Indala Reader Series

The Keyscan Indala reader series delivers outstanding and consistent performance with intelligent programming. They provide a secure environment with an added level of access control system security through a verification process at the reader. Utilizing the Keyscan 36 bit format structure the Indala reader and credential combination is reliable and trusted by clients. The 36 bit Indala series is made exclusively for use with our Keyscan access control systems.

Indala Readers are available in the following models:

  • MCR-30-H Slimline Mullion Reader
  • MCR-50-H Standard Reader
  • MCR-64-H Standard Keypad Reader

Other models include:

  • PX-603 Mullion Reader
  • PX-605 Standard Reader
  • PX-610 Mid-range Reader
  • PX-620 Long-range Reader
  • PX-K501 Reader & Keypad
Get in touch
Readers & Credentials

Product Details

Keyscan Indala credentials are designed to withstand the tough rigors of the access control environment. All readers and credentials are pre-configured for Keyscan 36 Bit wiegand output, offering off the shelf ordering. No need to remember your last card numbering sequence.

  • Indala readers are durable and weather resistant.
  • Limited lifetime warranty
  • Suitable for Indoor and outdoor installation
  • Keyscan 36 bit format

Technical Details

MCR-30-H:

Dimensions:  1.7” x 3.2” x 0.7” (4.3 x 8.1 x 1.8 cm)

  • Read range:  Up to 3.5” (8.8 cm)
  • Power supply: +5 - 16 VDC
  • Standard current draw:  85 mA
  • Keypad: No
  • Operating temperature: -40º to 149º F (-40º to 65º C)
  • Color: Black only
  • Weight: 3 oz (85 g)
  • Frequency: 125 kHz
  • Approvals:  FCC, ICC, CE, UL Standard 294*



MCR-50-H:

Dimensions:   3" x 4.6" x 0.4" (7.6 x 11.7 x 1 cm)

  • Read range:   Up to 7” (17.6 cm)
  • Power supply: +5 - 16 VDC
  • Standard current draw:  85 mA
  • Keypad: No
  • Operating temperature: -40º to 149º F (-40º to 65º C)
  • Color: Black only
  • Weight:  4 oz (113 g)
  • Frequency: 125 kHz
  • Approvals:  FCC, ICC, CE, UL Standard 294*



MCR-64-H:

Dimensions:   3" x 4.6" x 0.4" (7.6 x 11.7 x 1 cm)

  • Read range:   Up to 7” (17.6 cm)
  • Power supply: +5 - 16 VDC
  • Standard current draw:  85 mA
  • Keypad: Yes
  • Operating temperature: -40º to 149º F (-40º to 65º C)
  • Color: Black only
  • Weight:  4 oz (113 g)
  • Frequency: 125 kHz
  • Approvals:  FCC, ICC, CE, UL Standard 294*

*Carrying the ETL Label and tested by Intertek, conforms to UL Standard 294



PX-603

Dimensions: 4.5"H x 1.7" W x 0.8"T (11.4cm x 4.3cm x 2.0cm)

  • Read range: Up to 5" (12.7cm)
  • Power supply: 12 VDC at reader
  • Standard current draw: 65mA (off metal) 86mA (on metal)
  • Keypad: No
  • Operating temperature: -31° to +149°F (-35° to +65°C)
  • LED indicator: Tri-color standard (red, green, amber)
  • Audio tone: Standard, independently controllable
  • Frequency: 125 kHz
  • Approvals: UL 294/cUL, FCC Certification – United States, Canada Certification, CE Mark – Europe, Australia C-Tick, New Zealand/EMC

PX-605

Dimensions: 4.5"H x 1.7" W x 0.8"T (11.4cm x 4.3cm x 2.0cm)

  • Read range: Up to 5" (12.7cm)
  • Power supply: 12 VDC at reader
  • Standard current draw: 65mA (off metal) 86mA (on metal)
  • Keypad: No
  • Operating temperature: -31° to +149°F (-35° to +65°C)
  • LED indicator: Tri-color standard (red, green, amber)
  • Audio tone: Standard, independently controllable
  • Frequency: 125 kHz
  • Approvals: UL 294/cUL, FCC Certification – United States, Canada Certification, CE Mark – Europe, Australia C-Tick, New Zealand/EMC

PX-610

Dimensions: 5.1"H x 6.1"W x 1.1"T (13.0cm x 15.5cm x 2.8cm)

  • Read range: Up to 12" (30.5cm)
  • Power supply: 12 VDC at reader
  • Standard current draw: 117mA (off metal) 111mA (on metal)
  • Keypad: No
  • Operating temperature: -31° to +149°F (-35° to +65°C)
  • LED indicator: Tri-color standard (red, green, amber)
  • Audio tone: Standard, independently controllable
  • Frequency: 125 kHz
  • Approvals: UL 294/cUL, FCC Certification – United States, Canada Certification, CE Mark – Europe, Australia C-Tick, New Zealand/EMC

PX-620

Dimensions: 11.2"H x 11.2"W x 1.8"T (28.4cm x 28.4cm x 4.6cm)

  • Read range: Up to 28" (71.1cm)
  • Power supply: 24 VDC at reader
  • Standard current draw: 1.0A (off metal) 1.2A (on metal)
  • Keypad: No
  • Operating temperature: -31° to +149°F (-35° to +65°C)
  • LED indicator: Tri-color standard (red, green, amber)
  • Audio tone: Standard, independently controllable
  • Frequency: 125 kHz
  • Approvals: UL 294/cUL, FCC Certification – United States, Canada Certification, CE Mark – Europe, Australia C-Tick, New Zealand/EMC

PX-K501

Dimensions: 4.5"H x 1.7" W x 0.8"T (11.4cm x 4.3cm x 2.0cm)

  • Read range: Up to 5" (12.7cm)
  • Power supply: 12 VDC at reader
  • Standard current draw: 65mA (off metal) 86mA (on metal)
  • Keypad: Yes
  • Operating temperature: -31° to +149°F (-35° to +65°C)
  • LED indicator: Tri-color standard (red, green, amber)
  • Audio tone: Standard, independently controllable
  • Frequency: 125 kHz
  • Approvals: UL 294/cUL, FCC Certification – United States, Canada Certification, CE Mark – Europe, Australia C-Tick, New Zealand/EMC

Components

Keyscan Indala series readers will function only with Indala credentials:

  • PX-C1 clamshell card
  • PXKEY fob
  • PX-STKTAG adhesive tag
  • PXISO30 ISO graphics quality card
Readers & Credentials

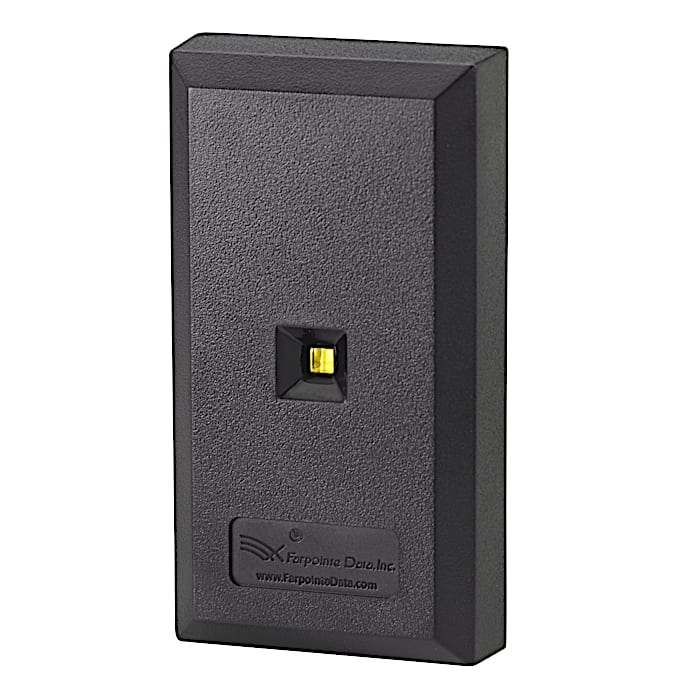

Indala MCR-30-H-0619

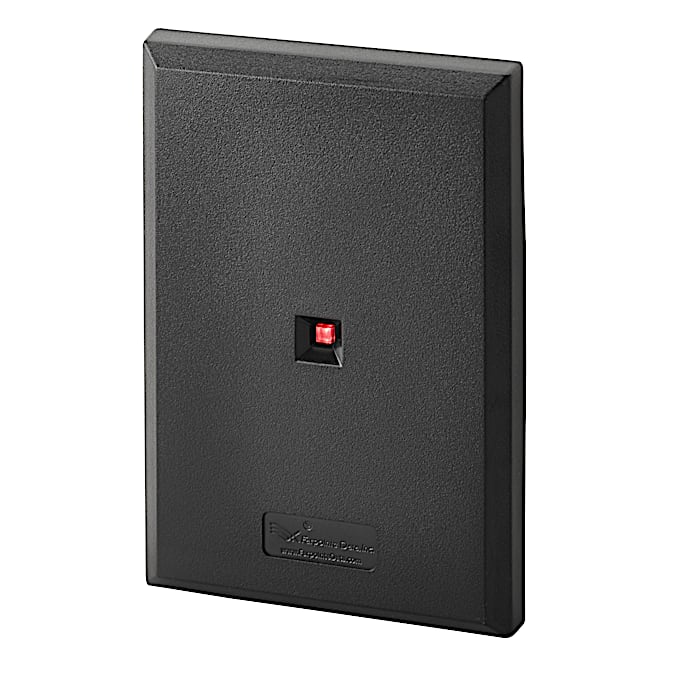

Indala MCR-50-H-0619
