RCI 125kHz Credential Series

RCI credentials sets the electronic security benchmark for 125 kHz standard frequency credentials and readers. RCI “Pyramid” credentials are passive devices, eliminate maintenance by requiring no battery, and can be ordered to support several proximity reader technologies.

Based upon proven contactless digital radio frequency identification (RFID) technology, RCI Pyramid readers and credentials interface with a wide range of electronic access control systems by complying with either the legacy Wiegand or the latest bi-directional Open Supervised Device Protocol (OSDP).

RCI 125kHz “Pyramid” Credential Series
  • MAXSecure a unique security feature
  • Contactless read range up to 7 inches
  • One year warranty
  • Wiegand output (26 bit)
  • Slot punch indicators
  • RCI Pyramid credentials make ideal alternatives to other more expensive credentials because they can also function with RCI Readers as well as a host of other 125kHz reader products

Product Details

Technical Details

  • Technology:125kHz standard security credentials
  • Format: Wiegand (26bit)
  • Material: PVC
  • Available with robust read ranges

Components

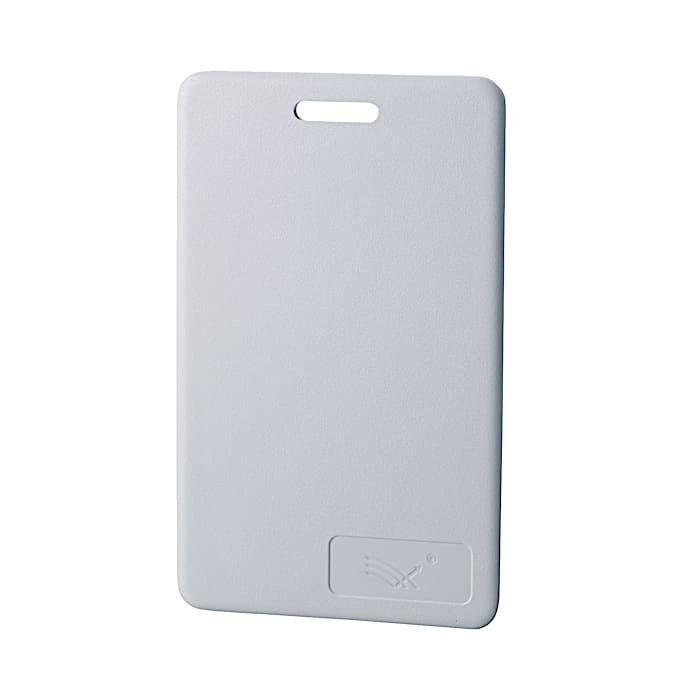

  • PSC-1-H: 125kHz clamshell credential

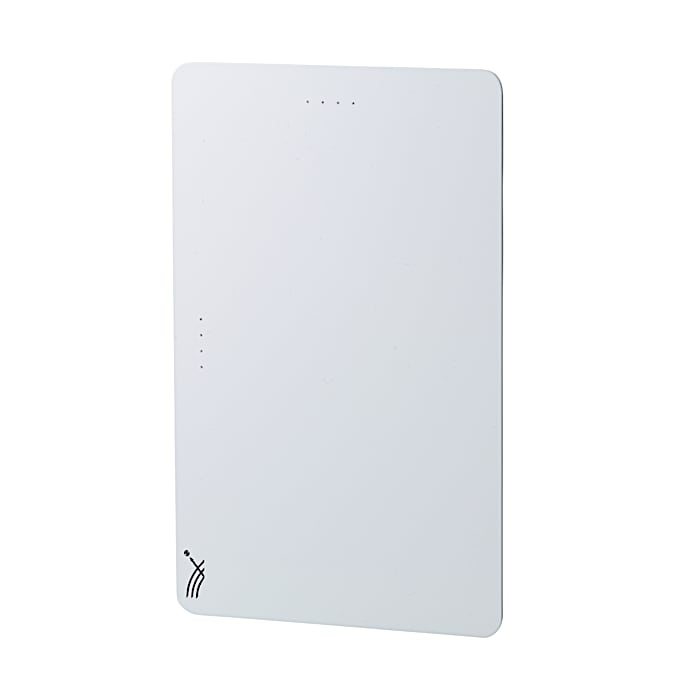

  • PSI-4-H: 125kHz image technology credential
  • PSK-3-H: 125kHz fob credential
  • PSM-2P-H: 125kHz ISO imageable credential
  • PSM-2S-H: 125kHz ISO imageable credential with magnetic stripe
  • PDT-1-H: 125kHz disc tag
  • DE2-125: 13.56MHz DESFire EV2 & 125kHz dual frequency credentials

Credentials will function with these RCI readers:

  • P-300-H-A
  • P-500-H-A
  • P-640-H-A
  • P-710-H-A
  • P-900-H-A
  • PCR35L mobile-ready
  • PCR620L mobile-ready
  • PCR640L mobile-ready

Keyscan (26-bit format):

  • K-PROX3
  • K-KPR
  • K-VAN

They will also function with a host of other 125kHz products including:

  • 6005B ProxPoint Plus
  • 5365 MiniProx®
  • 5395 ThinLine II®
  • 5455 ProxPro II
  • 5455KP ProxPro II with keypad
  • 5375 MaxiProx Long range

Applications

These credentials are suitable for use in virtually all applications retail and commercial; industrial; education, healthcare facilities and more.
