Product Summary

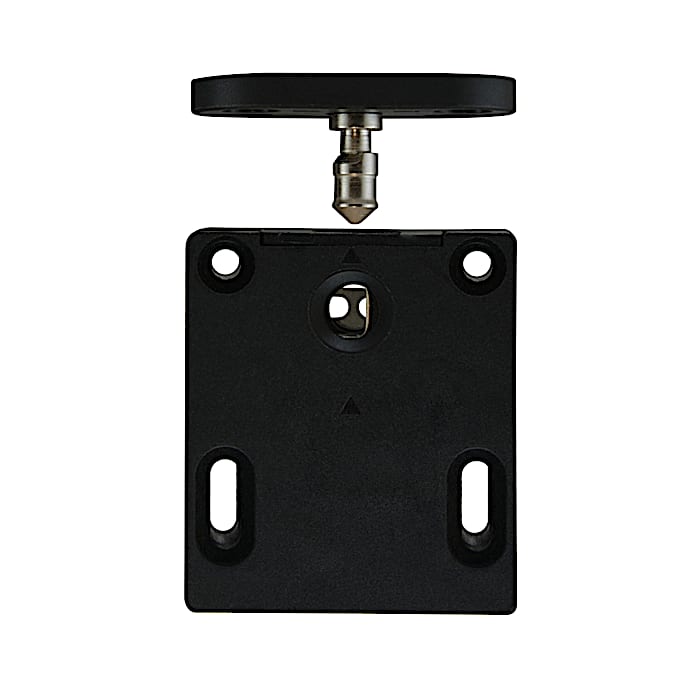

The 3510LM cabinet lock features a compact, surface-mounted design for small enclosures. This electric lock has side or top mounting capability for easy installation which makes it suitable for a variety of applications. Positioning of the RCI 3510LM cabinet locking pin determines the lock mode. A simple twist of the pin changes the lock from fail-safe to fail-secure during installation. The built-in monitoring switch indicates whether the mechanism is locked or unlocked for increased monitoring and accountability.

  • Energy: 250mA Field-Selectable 12VAC/VDC, 24VAC/VDC (Max at 12VAC/VDC, 120mA at 24VAC/VDC)
  • Strength: 250lbf Holding Force
  • Warranty: 3 Year Limited Warranty
  • Mode: Field-Selectable Fail-Safe & Fail-Secure
  • Monitoring: Built-in Monitoring Switch

Product Details

  • Surface-mounted compact electric lock
  • Versatile mounting positions
  • Elongated holes for adjustable mounting
  • Zinc-plated (rust-resistant) steel locking pin assembly
  • Low energy consumption
  • Positioning of the locking pin determines lock mode
  • Built-in monitoring switch indicates whether the mechanism is locked or unlocked
  • Black finish
  • 250mA Field-Selectable 12VAC/VDC, 24VAC/VDC (Max at 12VAC/VDC, 120mA at 24VAC/VDC)
  • 250lbf Holding Force
  • 3 Year Limited Warranty
  • Field-Selectable Fail-Safe & Fail-Secure
  • Built-in Monitoring Switch

Technical Details

Dimensions: 1-5/8" W x 1-7/8" H x 13/16" D (42mm x 48mm x 20mm)

Applications

  • Small Interior Enclosures
  • Filing Cabinets
  • Cash Drawers
  • Drug Cabinets
  • Showcases
  • Jewelry Cases
  • Desk Drawers
  • Key Cabinets
  • Vending Machines
  • Machine Access Covers

3510LM Cabinet Lock Specialty Locks RCI EAD
