dormakaba door closer ITS 96 EN 3-6 BCA with hydraulic backcheck

With the new integrated door closer ITS 96 EN 3-6 BCA with hydraulic backcheck, doors cannot be thrown open in an uncontrolled manner, which offers effective protection against damage and accidents.

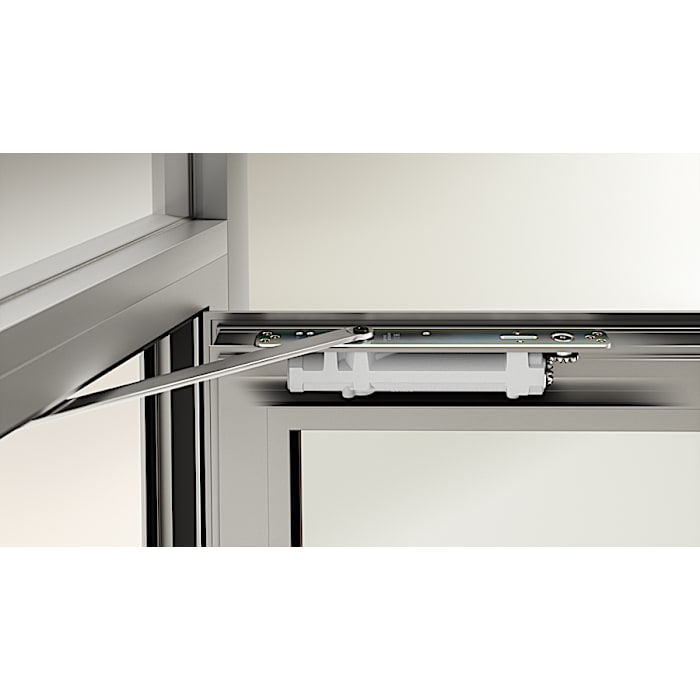

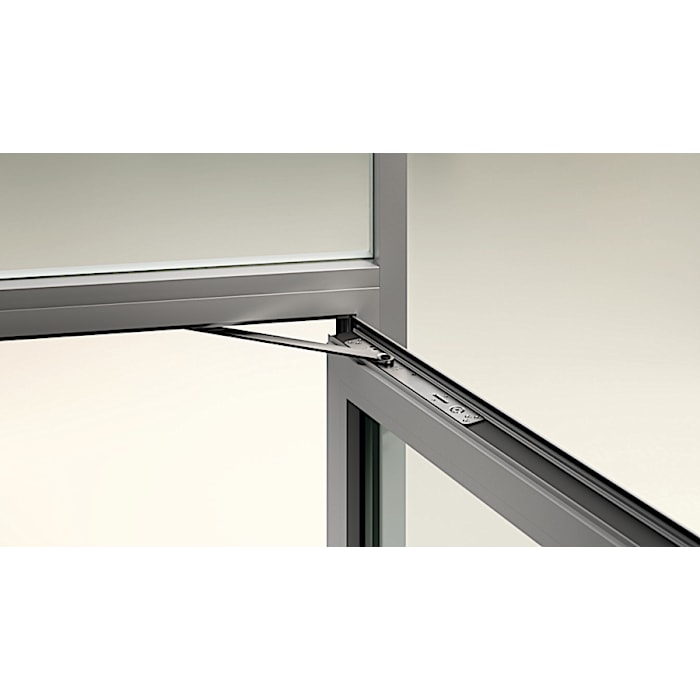

The integrated door closer ITS 96 EN 3-6 BCA with its slim housing and the matching slide channel is conceived as a very compact system that allows the door closer to be perfectly integrated in the door and frame. Its compact construction makes the integrated dormakaba door closer ITS 96 EN 3-6 BCA suitable for virtually any door with a door leaf thickness of 50 mm or more (e. g. sound-proof doors, fire and smoke doors, exterior doors). Thanks to its concealed installation, the robust ITS 96 EN 3-6 BCA is not only optimally protected against vandalism, but also allows prestige doors to blend perfectly into the appearance of the building. At the same time, the integrated door closer ITS 96 EN 3-6 BCA compels with its durability. The integrated filtration system “Oilfit” filters the oil during every movement, which guarantees a long service life without loss of performance. The use of materials with similar heat coefficients for the piston and housing also contributes to the consistent performance and long service life. Thanks to the tried-and-tested “EASY OPEN” technology, doors that are equipped with an integrated door closer ITS 96 EN 3-6 BCA are easy to operate and barrier-free. The adjustable opening damping now available in the closer intensifies with increasing door acceleration. This means that it does not present an obstacle during normal use, but offers reliable protection in the event of a strong swing.

Get in touch

Concealed installation and unblemished appearance of prestige doors
Optimum protection against vandalism
Barrier-free thanks to the tried-and-tested “EASY OPEN” technology (DIN 18040 and DIN SPEC 1104)
Adjustable closing force, closing time and backcheck
For door leaf widths up to 1100 mm
Latching action can be switched on or off
Intelligent opening damping with increasing damping as door acceleration increases.
Versatile in use: Internal and external, single-leaf and double-leaf doors. For door leaf and lintel installation.
Max. Door weight of up to 250kg.
For door leaf widths up to 1,400 mm
