Funeo RM-F Wireless Smoke Detector

The wireless smoke detection system Funeo for hold-open systems for doors is easy to install and safe to operate. Screw on the ceiling smoke detector and manual release button, connect the wireless module to the smoke detector with integrated power pack, and it’s ready to go. No need to lay expensive cables on the ceiling and in the wall. Not only is the wireless smoke detection system easy to install, it also has an impressive and functional design. A discreet light ring indicates the operating status, and its long battery life guarantees an operating time of up to eight years.

Get in touch
Funeo
  • Wireless connection.
  • Meets all legal requirements for fire and smoke doors.
  • Built-in battery for up to eight years’ operating time.
  • Innovative LED light ring.
  • Easy, quick, and cost-effective to install.

Product Details

Wireless Smoke Detection System with Innovative LED Light Ring Safe to Operate, Easy to Install

The wireless smoke detection system consists of the FM-AP wireless module, the RM-F smoke detector, and the optional HT-F wireless manual release button for surface-mounted and flush-mounted applications. The wireless module is connected to the smoke detector with integrated power pack. All components are equipped with a multicolored LED display. During standard operation, the LED indicator lights up green when the door is opened. In the event of malfunctions, the color changes to yellow or red (e.g., when there are dust deposits in the smoke detector, a weak battery, or when the statutory operating time has been reached). In service mode and during commissioning, additional color codes support efficient setup and regulatory maintenance.

RM-F Wireless Smoke Detector

The RM-F wireless smoke detector with a multicolored LED light ring reliably detects smoldering fires as well as open fires with smoke development.

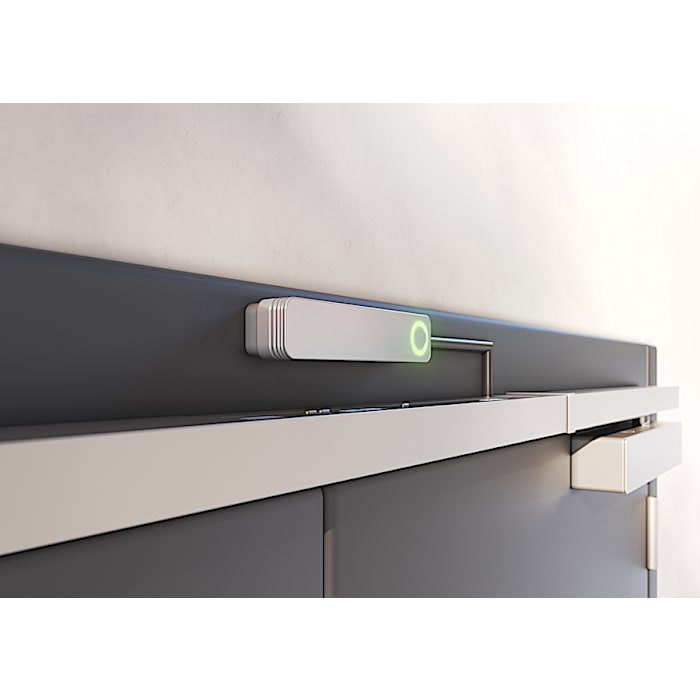

FM-AP Wireless Module

The FM-AP wireless module with a multicolored LED light ring is connected to the RMZ smoke detector with integrated power pack and serves as a receiver for the RM-F wireless smoke detectors and HT-F wireless manual release button. Up to 20 wireless nodes can be registered.

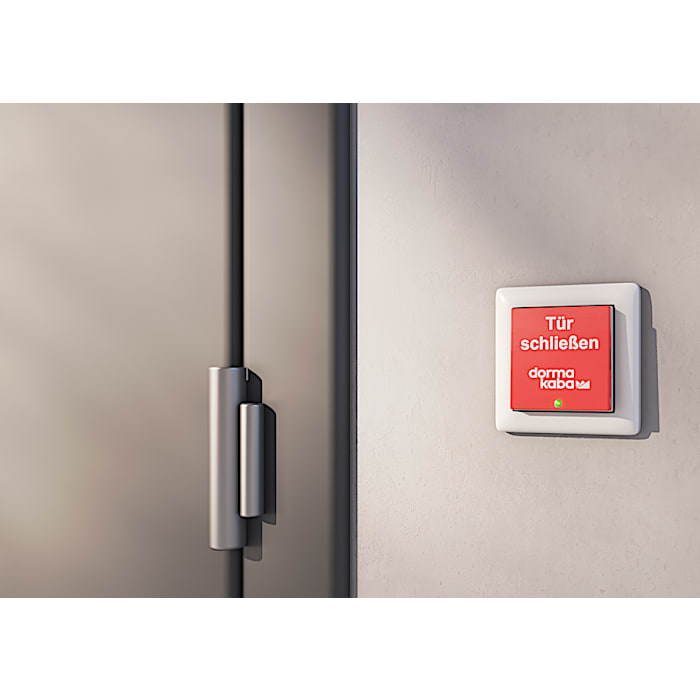

HT-F Wireless Manual Release Button

The HT-F wireless manual release button supplements the system with manual triggering. A multicolored LED provides information about the operating status. The push button is supplied with a surface-mounted socket but can also be installed in a flush-mounted socket with a depth of at least 50 mm.

Applications

For architects and planners

  • Secure wireless connection even without cables.
  • Easy to plan and install – uncluttered design, even in listed buildings.
  • Tried-and-tested security; meets legal requirements for fire and smoke doors.

For fitters

  • Can be used with all installation options.
  • Quick and easy installation thanks to the wireless connection.
  • Easy to retrofit even in listed buildings.

For facility operators

  • Safe operation of smoke and fire doors.
  • LED light ring shows operating status.
  • Easy maintenance and service with a long battery life (up to eight years).
  • Cost-effective solution for complex door situations.

For trade

  • Unique product allocation ensures high execution safety.
  • One model for single- and double-leaf applications.
Funeo
Funeo
Funeo
