Product Summary
PDD-FT/PDM-4/8/8s distribution boards are now discontinued. Please see dormakaba's all new DKPS Power Supplies.
The RCI distribution boards (PDD-FT, PDM-4, PDM-8, & PDM-8s) distribute a single low voltage output and can be used to customize a power supply after installation. The PDM-4 distributes a DC source into 4 outputs, the PDM-8 distributes a DC source into 8 outputs, and the PDM-8s distributes up to 3 DC sources into 8 outputs. Each output has a red LED power indicator which improves blown fuse recognition and reduces servicing time. The PDD-FT board is a fire panel control interface that can be used to control DC output based on a fire alarm control panel.
- Warranty: 2 Year Limited Warranty
Product Details
PDD-FT
The PDD-FT board is a fire panel control interface. This board can be used to control DC output based on a fire alarm control panel. Outputs switch state on alarm.
- 2 Year Limited Warranty
Shared Features of PDM-4, PDM-8, & PDM-8S Distribution Board
When installed into a power supply, servicing time can be greatly reduced by the output indicator LED’s. If an output fuse is blown the accompanying LED will be off, simply identifying the device connected to this output. This will allow potential problems to be resolved quickly. In addition to short circuit protection, the input terminals also have a surge protector that can absorb a 1,500W spike or surge to protect connected devices.
- PDM-4 distributes a DC source into 4 outputs
- PDM-8 distributes a DC source into 8 outputs
- PDM-8S distributes up to 3 DC sources into 8 outputs
- The output voltage and total current available is determined by the input supply
- Separate red power indicator LED for each output
- 2 Year Limited Warranty
Technical Details
PDD-FT Power Distribution Board With Fire Trigger
Dimensions: 2-1/4"W x 3-3/4"H (56.5mm x 95.25mm)
- UL 294 Listed for access control system unit

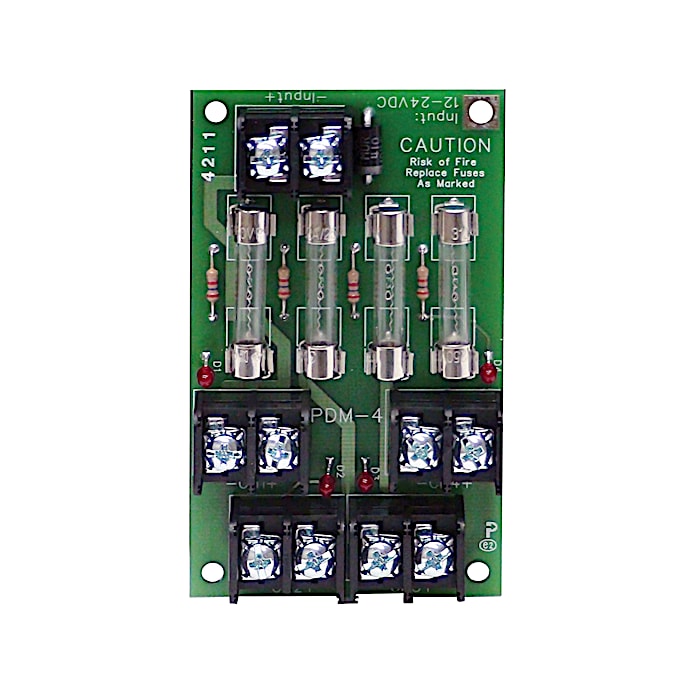

PDM-4 Distribution Board
Dimensions: 2-1/4"W x 3-3/4"H (56.5mm x 95.25mm)
- UL 294 Listed for access control system unit
- CAN/ULC S319 Listed for access control system unit for Canada
- PDM-85 output is jumper selectable from 3 seperate inputs

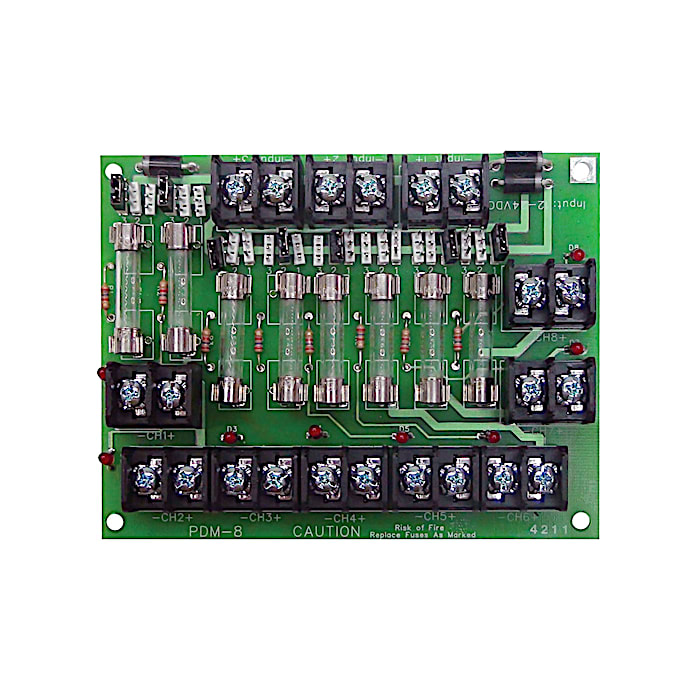

PDM-8 Distribution Board
Dimensions: 3-3/4"W x 4-3/4"H (95.5mm x 122mm)
- UL 294 Listed for access control system unit
- CAN/ULC S319 Listed for access control system unit for Canada
- PDM-85 output is jumper selectable from 3 seperate inputs
PDM-8S Distribution Board
Dimensions: 3-3/4"W x 4-3/4"H (95.5mm x 122mm)
- UL 294 Listed for access control system unit
- CAN/ULC S319 Listed for access control system unit for Canada
- PDM-85 output is jumper selectable from 3 seperate inputs
