RCI 10-3/10-3-FPD

The 10-3 and 10-3 FPD (Fire Panel Disconnect) Power Supply is now discontinued. Please see dormakaba's all new DKPS Power Supplies.

The 10-3 & 10-3-FPD (Fire Panel Disconnect) power supplies operate at field selectable voltage of 3A at 12 VDC or 1.5A at 24VDC. The RCI power supplies have multiple listings for a wide variety of applications and include a collection of features for reliable operation. The RCI 10-3-FPD variant includes a multi-panel interconnect-fire disconnect with a fire interface for additional supervision and override capabilities.

Get in touch
10 3 Power Supplies RCI EAD
  • Energy: Field-Selectable 3A At 12VDC 1.5A At 24VDC
  • Warranty: Lifetime Limited Warranty

Product Details

Shared Features of 10-3 & 10-3-FPD

  • Multiple listing for a wide variety of applications
  • Field-Selectable voltage 3A at 12VDC or 1.5A at 24VDC
  • Filtered and regulated DC output
  • Short circuit protection
  • AC fail output relay
  • Modular options
  • External AC power indicator
  • Easy installation
  • Battery charging circuit
  • Field-Selectable 3A At 12VDC 1.5A At 24VDC
  • Lifetime Limited Warranty

FPD – Fire Panel Disconnect

  • Jumper-selectable auto or manual reset
  • Fire Panel Interface with Switching Output (FPD model only)
  • “End of line” resistor supervision on fire interface
  • Selectable ground fault detection on fire interface
  • Instant unlock upon power failure
  • Remote override reset capabilities for authorized personnel
  • Multi-panel interconnect-fire disconnect

Technical Details

10-3 3A Power Supply
Dimensions: 12-1/2"W x 12-1/2"H x 4"D (318mm x 318mm x 102mm)

10-3-FPD 3A Power Supply with Fire Panel Disconnect
Dimensions: 12-1/2"W x 12-1/2"H x 4"D (318mm x 318mm x 102mm)

  • UL 294 Listed for access control unit power supply
  • CAN/ULC-S319 Listed for access control unit power supply for Canada

Applications

  • To Power Access Control Systems
  • To Power Electric Locking Systems
  • To Power Electromagnetic Locking Systems
10 3 Power Supplies RCI EAD

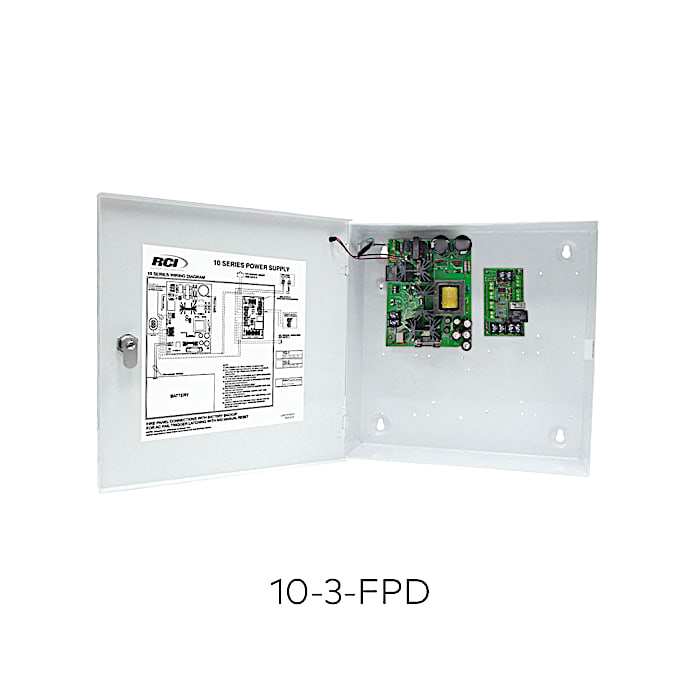

10 3 FPD Power Supplies RCI EAD
