Product Summary
The 10-1 and 10-1 FPD (Fire Panel Disconnect) Power Supply is now discontinued. Please see dormakaba's all new DKPS Power Supplies.
The 10-1 power supply & the 10-1-FPD (Fire Panel Disconnect) variant are field selectable for voltage of 1.5A at 12VDC or 1A at 24VDC. The RCI 10-1 series are for filtered and regulated DC output and have short circuit protection. The power supplies have an external AC power indicator and AC fail output relay for increased reliability. The RCI 10-1-FPD is jumper-selectable auto or manual reset. It is also equipped with a fire panel interface with switching output, selectable ground fault detection and end of line resistor supervision.
- Energy: Field-Selectable 1.5A At 12VDC 1A At 24VDC
- Warranty: Lifetime Limited Warranty
Product Details
Shared Features of 10-1 & 10-1FPD
- Multiple listing for a wide variety of applications
- Field-selectable voltage 1.5A at 12VDC or 1A at 24VDC
- Filtered and regulated DC output
- Short circuit protection
- AC fail output relay
- Modular options
- External AC power indicator
- Easy installation
- Battery charging circuit
- Field-Selectable 1.5A At 12VDC 1A At 24VDC
- Lifetime Limited Warranty
FPD – Fire Panel Disconnect Features
- Jumper-selectable auto or manual reset
- Fire Panel Interface with Switching Output (FPD model only)
- “End of line” resistor supervision on fire interface
- Selectable ground fault detection on fire interface
- Instant unlock upon power failure
- Remote override reset capabilities for authorized personnel
- Multi-panel interconnect-fire disconnect
Technical Details
10-1 1.5A Power Supply
Dimensions: 12-1/2"W x 12-1/2"H x 4"D (318mm x 318mm x 102mm)

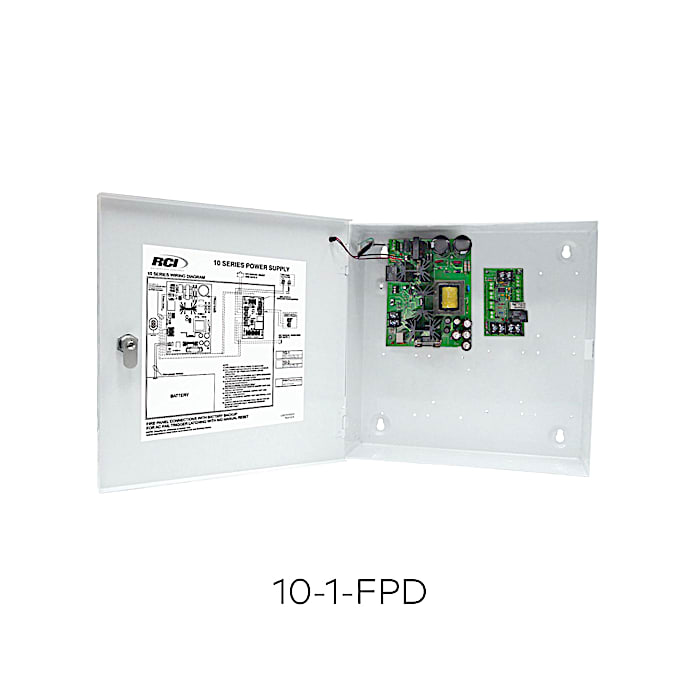

10-1-FPD 1.5A Power Supply with Fire Panel Disconnect
Dimensions: 12-1/2"W x 12-1/2"H x 4"D (318mm x 318mm x 102mm)
- UL 294 Listed for access control unit power supply
- CAN/ULC-S319 Listed for access control unit power supply for Canada
Applications
- To Power Access Control Systems
- To Power Electric Locking Systems
- To Power Electromagnetic Locking Systems
