Opens new design perspectives

The dormakaba Profile terminals are an attractive and yet understated solution for single-leaf and double-leaf narrow stile doors. This is also true when not enough space is available to install conventional terminals directly next to the door or when free-standing columns are not desired.

Perfectly integrated and quickly installed

The installation is flexible depending on the requirements of the door leaf or door frame profile. Thanks to the perfected design, the entirely enclosed components can be integrated into most narrow stile doors with little effort. The cables are also designed to save space.

Convenient connection

The Profile terminal consists of the TL-NCP DCW^® emergency stop switch and the TL-STP 42 key switch. It is easily connected via the DCW^® system bus with a separate control unit, e.g. the RZ TMS 2 escape route control box.

TL Profile Set DCW^® set components

TL-NCP DCW^®

Emergency stop switch with tamper monitoring in a compact design for the optional installation into the door leaf or door frame profile. For connections to the RZ TMS 2 escape route control box or TL-S TMS 2 control board through the DCW^® system bus.

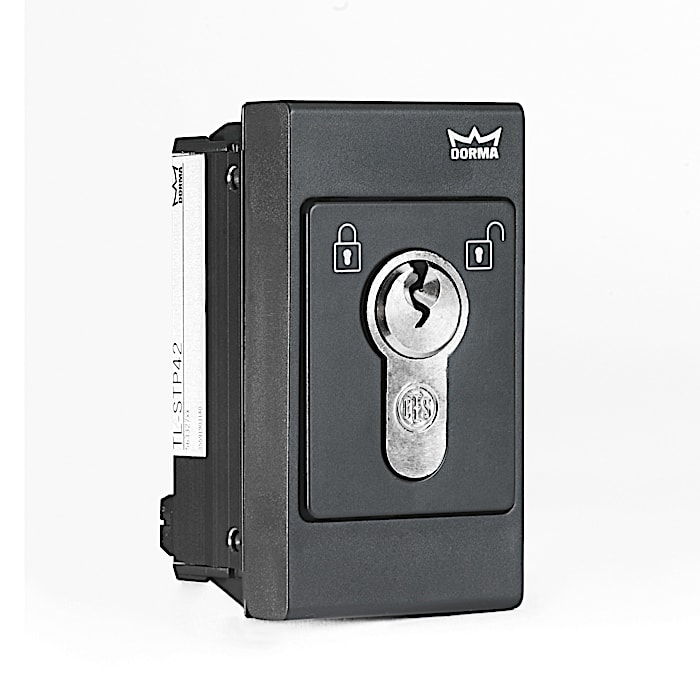

TL-STP 42

Key switch with tamper monitoring in a compact design for the optional installation into the door leaf or door frame profile. To unlock and lock doors in escape route security and door management systems.

Optional key switch

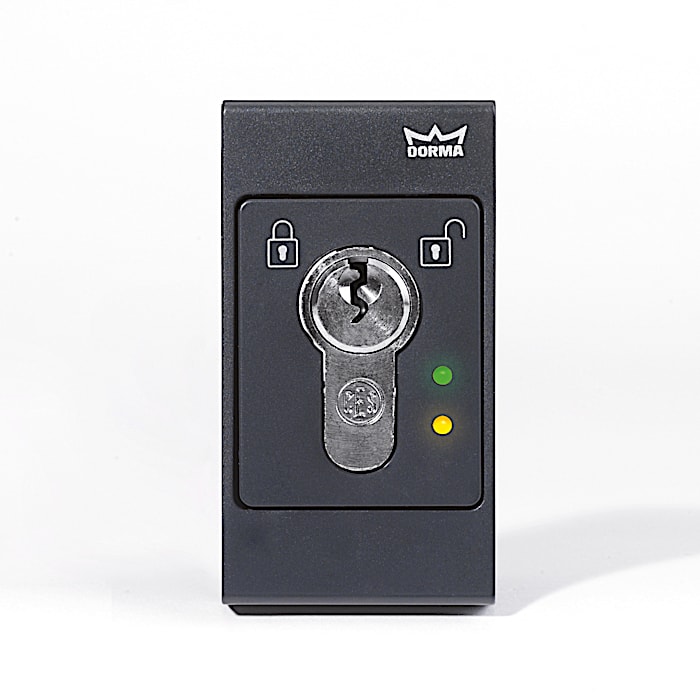

TL-STP 52 / STP 52 DCW^®

The Profile key switch with LED display is particularly convenient for use on the exterior of the escape door. This makes it easy to recognise at a glance whether the door is locked or released, even against the direction of escape. Optionally available in an analog or DCW^® version.
