Product Summary

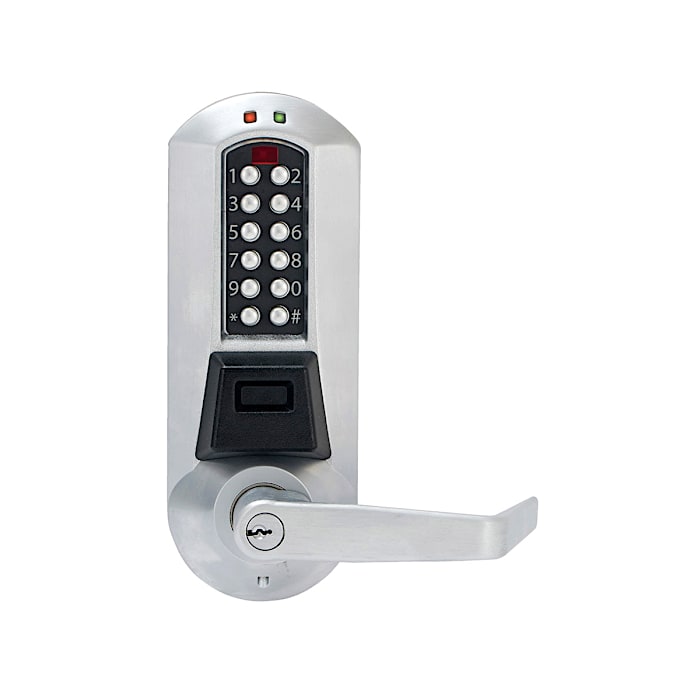

The E-Plex 5700 Series electronic pushbutton lock supports thousands of users and audit events. It supports three methods of authentication - PIN only, prox card credentials only, or both PIN + prox card. Compatible with a host of Keyscan, Farpointe and HID 125kHz standard frequency credentials and is an ideal retrofit for various Adams Rite mortise locking devices. E-Plex 5700 can function in standalone offline or wireless modes and can be trusted in many access control applications.
Product Details
No Wires: E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks
Locking Device Options:
- Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)
- American Standard Mortise: With 1" (25 mm) and 1¼" (32 mm) face plate; with and without deadbolt
Number of Users: 3,000 (per door) with software; 300 in LearnLok mode
Programming: Locks can be programmed several ways:
- Keyscan Aurora and wireless zigbee network
- Keyscan Aurora offline with M-Unit handheld
- Keyscan LUNA offline with M-Unit handheld
- E-Plex Enterprise Software
- Or, via Keypad with LearnLok feature
Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
Key Override: Key-in-Lever/Knob cylinders, small format interchangeable cores, large format removable cores
Scheduling:
- Access schedules—up to 16 different access schedules may be programmed into lock
- Holiday/Vacation—up to 32 different holiday/ vacation blocks may be programmed into lock
Operation Modes:
- PIN access
- Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
- Lockout
Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
User Parameters:
- Code length—adjustable to accept 4 to 8 digits
- Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock time—adjustable from 2 to 20 seconds
Exit Device Compatibility: Find a list of compatible exit devices in the Electronic Lock price book
Technical Details
E-Plex 5700 integrates with dormakaba products to provide complete facility access control.
- Functions online or offline with Keyscan Aurora, Keyscan LUNA Software (offline only) or Enterprise software.
Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid castzinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
Handing: Non-handed: pre-assembled for left-hand door installation—easily changed in the field
Backset:
- Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
- Mortise: 2¾" (70 mm) backset
- Exit Trim Model: Varies by Exit Device
Latches:
- Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
- Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
Additional Configurations:
- Stand-Alone Access Controller - view product specifications
- Entry/Exit - download specification sheet
Exit Device Hub Rotation: Up to 60º
Minimum Stile Required: 5" (127 mm)
Key Override: Find a list of compatible key overrides in the Electronic Lock price book
Standard Finishes:
- Satin Chrome 26D (626) housings and levers
- Black (676) housings with Satin Chrome (626) levers and accents
Optional Finishes:
- Bright Brass 03 (605) housings and levers
- Satin Brass 04 (606) housings and levers
- Bright Chrome 026 (625) housings and levers
- Dark Bronze 744 (10B) with brass accents
Functionalities
E-Plex 5700 wireless applications using Keyscan Aurora or Enterprise software
- Up to 100 gateways per network
- 100 devices (locks/routers) per gateway
- Up to 8 routers per gateway
- Locks/routers can be up to 2-hops from gateway
- Locks will ping and look for closest gateway/router
E-Plex 5700 offline applications using Keyscan Aurora; Keyscan LUNA or Enterprise software
- Data and permissions are transferred from Aurora software and uploaded to each lock using M-Unit handheld
- Locks can also be programmed directly
