Product Summary
Waist high turnstiles

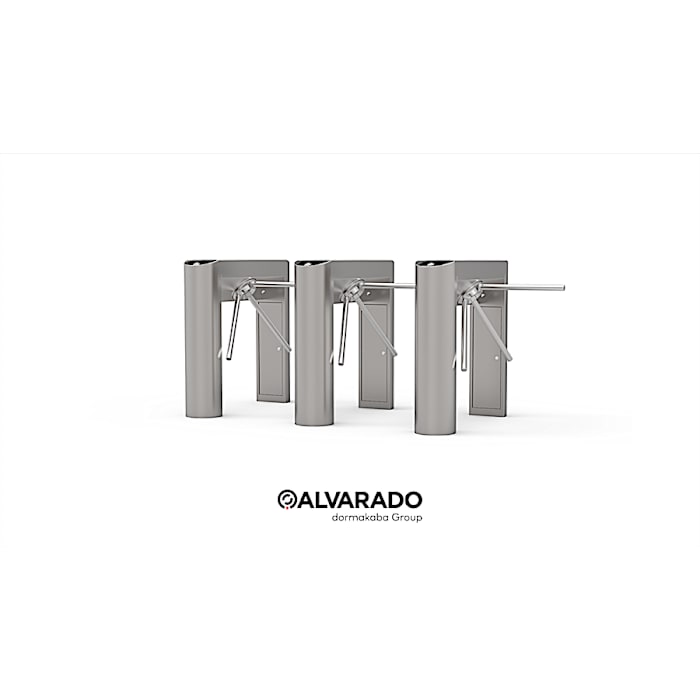

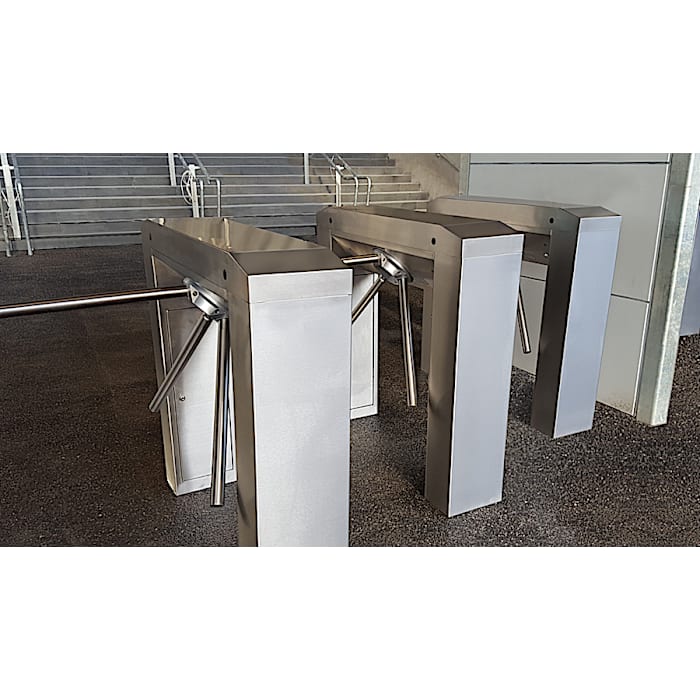

The Alvarado EDM Series waist high turnstiles are designed to offer secure, efficient access control with a motorised drive system, making them ideal for both indoor and outdoor applications. Featuring smooth, near-silent operation, these turnstiles are perfect for high-traffic environments such as stadiums, corporate facilities, and fitness centres. The Alvarado EDM supports single or bidirectional operation and can be configured for entry, exit, or restricted access modes based on site requirements.
These turnstiles offer an anti-panic drop-arm function, ensuring clear egress in case of power loss or emergency. Compatible with various credential readers, including proximity and biometric options, the Alvarado EDM integrates seamlessly with existing access control systems. Available in square and bullnose designs, the turnstiles come in satin stainless steel or powder-coated finishes, offering both aesthetic appeal and durability.
- Smooth, motorised operation for enhanced user experience
- Anti-panic drop-arm for safe egress in emergencies
- Seamless integration with access control and fire systems

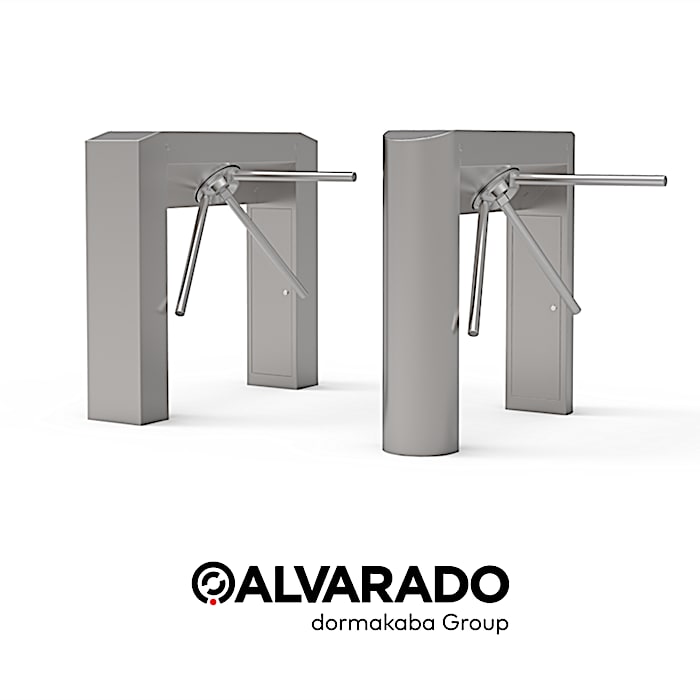

- Available in square and bullnose cabinet designs
- Suitable for both indoor and outdoor installations
Product Details
Unmatched reliability and access control
The Alvarado EDM Series high-waisted turnstile is designed to deliver secure, efficient, and user friendly bi-directional access control. Equipped with advanced features, the Alvarado EDM ensures smooth and nearly touchless passage, integrating seamlessly with facility access control systems or devices that support dry contact outputs, such as push buttons.
- Bi-directional access control: Operates with facility access control or dry contact devices, unlocking on valid credential input for a streamlined user experience.
- Smooth, motorised arms: In controlled passage mode, the motorised arms move slightly to prompt the user, then rotate fully with a light touch, ensuring near touchless passage.
- High throughput and stacking: Processes multiple users rapidly by stacking activations during busy times, accommodating high-traffic periods with ease.
- Flexible entry and exit modes: Supports both card-in/card-out and card-in/free-exit configurations. The direction can be closed to ignore all inputs if needed.
- Integrated reader options: Easily compatible with card readers, which can be mounted on the lid or installed underneath in a designated cutout. Optional LED lights indicate credential status to users.
- Automatic drop arm for emergencies: Includes anti-panic functionality, dropping the arm for clear egress upon power loss or fire alarm input. The arm re-engages automatically when safe.
- Battery backup: Optional battery backup maintains full functionality during power outages, allowing for continued operation for up to three hours, with fire system input prioritising safe egress.
- Configuration utility: The Alvarado EDM Utility software allows easy adjustment of settings, connected directly via a laptop to the turnstile’s control board.
- Counting and crowd control: Suitable for patron counting applications, sending rotation data to an internal counter or integrating with Alvarado’s GateWatch or third party counting systems.
The Alvarado EDM turnstile combines advanced control, reliable performance, and user convenience, making it an ideal solution for high-traffic venues seeking robust access control with added patron counting and crowd control capabilities.
Technical Details
- Power Supply: 110-120VAC or 220-240VAC, 50-60Hz.
- Operational Voltage: 24VDC, 12VDC, and 5VDC.
- Maximum Power Consumption: 60W.
- Cabinet Material: #304 stainless steel, satin finish.
- Throughput Rate: Up to 40 users per minute with proximity readers.
Functionalities
The Alvarado EDM Series high waisted turnstile combines enhanced safety features with flexible access management, making it ideal for a secure and seamless user experience in both indoor and outdoor settings. The motorised, controlled arm rotation ensures smooth and safe passage, with a near touchless design that requires minimal force, enhancing accessibility for all users. Additionally, the wide passage comfortably accommodates larger users, creating an inviting and practical entry solution.
Built-in safety features
The Alvarado EDM's intelligent drive system monitors and controls arm movement to enhance safety and prevent unwanted impact:
- The turnstile’s closed-loop motor drive system detects any obstruction in the arm’s rotation path, immediately stopping the arm to avoid injury or damage.
- In an emergency, the horizontal arm automatically drops, allowing free egress for patrons. This feature also activates upon power loss, providing reliable exit access during critical situations.
- The motorised arm rotation can be adjusted for speed through software controls, ensuring optimal performance for any environment.
Key safety highlights
- Controlled, smooth motorised arm rotation with intelligent drive feedback.
- Immediate stop on detecting impact during arm rotation.
- Free passage enabled during emergencies or power failure.
- Software-controlled rotation speed adjustment for tailored use.
Employee access and visitor management
The Alvarado EDM integrates seamlessly with facility access control and visitor management systems, making it versatile for employee and visitor access points. With a dedicated fire system input and rotation feedback output, the Alvarado EDM ensures secure, monitored passage for authorised users, supporting a wide range of credential readers that can be attached to fit user needs.
Key features for access control integration
- Straightforward integration with access control and visitor management systems.
- Flexible options for credential reader attachment, compatible with existing systems.
- Dedicated fire input and feedback output for reliable tracking of each entry.
- Convenient mode switching via a three-position key for operational flexibility.
The Alvarado EDM is a robust and adaptable solution, engineered to provide controlled, safe, and secure passage for all users. With its advanced safety features, versatile integration capabilities, and easy configuration, it is ideally suited for high-traffic facilities seeking reliable access management with enhanced user protection.
Applications
- Corporate offices: Controls entry and exit for employees and visitors
- Fitness centres: Manages access to gym facilities for members
- Stadiums and arenas: Controls crowd flow and supports ticket validation
- Amusement parks: Ensures secure entry and exit for park visitors
- Manufacturing plants: Monitors access points for authorised personnel only
