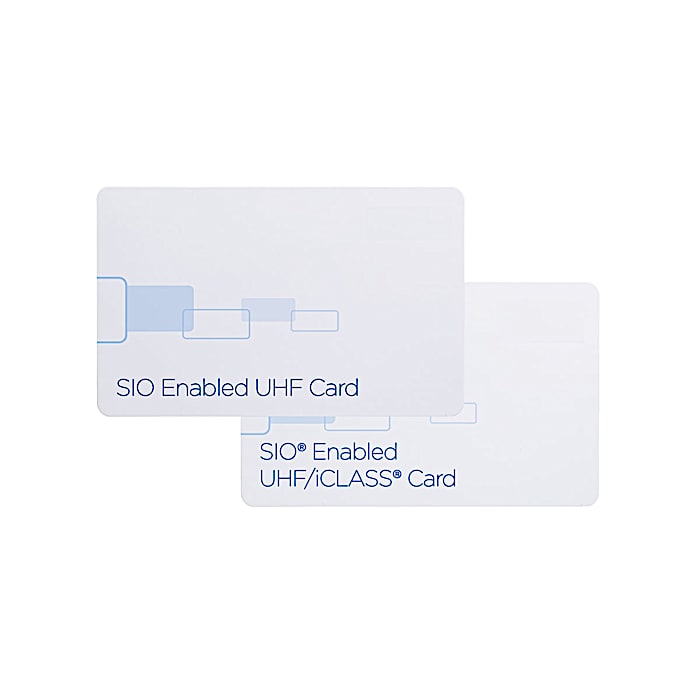

UHF Credentials

If you’re looking for high frequency long rang access control solutions rely on dormakaba’s Keyscan UHF reader and credential combination. The UHF credentials meets strict ISO standards for thickness and can be used with high definition printers for custom artwork or photo identification imprinted directly on the card. The KU90UHF reader first issues a password to obtain access to secured areas of this card’s memory. Secure Identity Object (SIO) data model adds a layer of encryption and authentication for advanced security. Select UHF credentials can also be used with Keyscan iCLASS SE readers.

Functions with Keyscan KU90UHF long-range reader

Available models:

  • KIUHF graphics quality card
  • KI4KSEUHF dual UHF/SE graphics quality card with 4K memory and 2 application locations

Highlighted features of the Keyscan UHF Credentials:

Get in touch
KI4KSEUHF Credentials Keyscan EAD
  • Impressive read range: Ultra high frequency (UHF) technology can be read from a distance of up to five meters depending on frequency, reader and environment
  • Highly secure: Secure Identity Object® (SIO®) enabled
  • Reliable: Able to withstand 100,000 write cycles for high read/write reliability and a long use life
  • Cost effective: Passive no-battery design does not require maintenance

Product Details

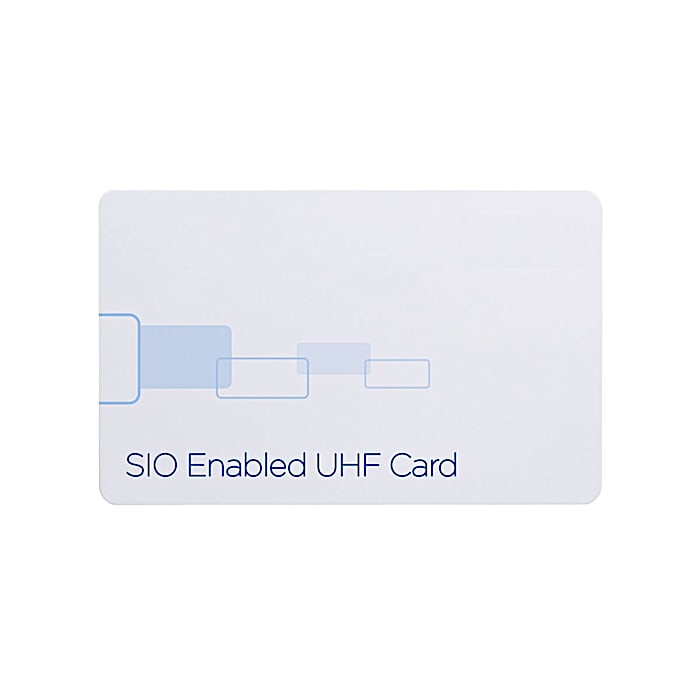

Keyscan KIUHF credential
The KU90UHF reader issues a password to obtain access to secured areas of the card’s memory. Secure Identity Object (SIO) data model adds a layer of encryption and authentication for advanced security.

  • Ultra high frequency read/write contactless smart card technology for long range, reliable communications with high data integrity
  • Based on EPC (Electronic Product Code) Radio Frequency Identity Protocols Class-1 Generation-2 UHF RFID Protocol for Communications at 960 MHz
  • Uses logical protection (access password) to prevent unauthorized access to the memory
  • Passive, no-battery design allows for large number of reads
  • Strong and resistant to damage
  • EPC Class-1 Generation-2 and ISO18000-6C compliant
  • Supports frequency range 960 MHz
  • Card memory has a 50-year data retention capability and 100,000 cycle endurance
  • Also available Keyscan Windshield Credential Mount (WSHLDMT) - Suction cup mount allows semi-permanent mounting in the transponder location

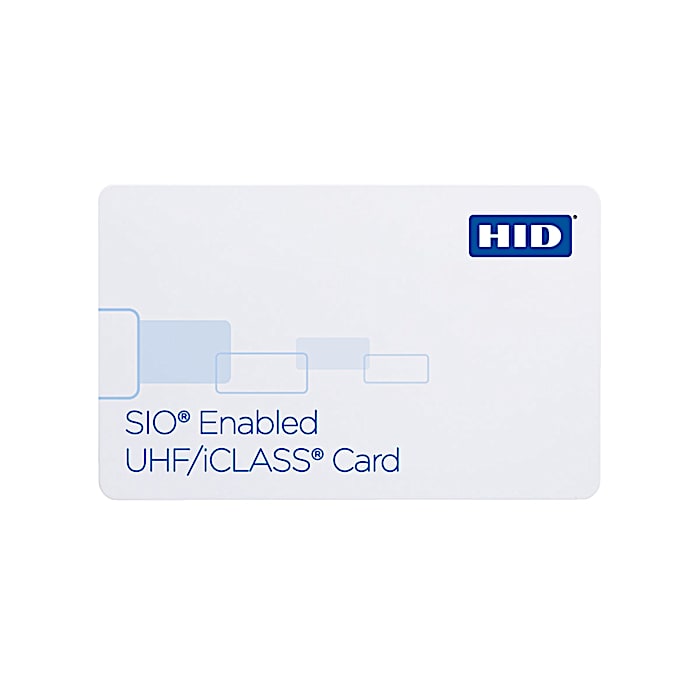

Keyscan KI4KSEUHF dual UHF/SE credential
This smart card combines UHF technology with Keyscan iCLASS SE technology, offering a single-credential solution for both door and parking/gate access. Available in packages of 50 credentials. This SIO® enabled UHF/ iCLASS® credential can be read from distances of up to five meters (16 ft) for long-range identification and will also function in iCLASS SE environments.

  • Ultra-High Frequency format can be read from up to 5 meters from the KU90UHF reader
  • 13.56MHz format for use with iCLASS SE standard profile readers
  • 4K memory with 2 application locations
  • Keyscan high security format works with Keyscan iCLASS SE readers
KI4KSEUHF Credentials Keyscan EAD
KIUHF Credentials Keyscan EAD
UHF Credentials Keyscan EAD
