KU90UHF

The KU90UHF readers offer a long-range solution for parking and gate control. Featuring advanced encryption technology, the KU90UHF delivers a secure ultra-high frequency (UHF) solution that functions seamlessly with Keyscan access control systems. The Keyscan KU90UHF offers a read range of up to five meters and supports the ability to combine building access with parking and gate control on a single card or fob.

The Keyscan KU90UHF utilizes state-of-the-art authentication through the iCLASS SE Secure Identity Object (SIO) data model. When paired with SIO-enabled UHF credentials, the platform provides trusted and secure communication between the card and reader to prevent unauthorized access. The reader includes a rugged housing that protects the antennae and electronics from harsh outdoor conditions. The readers are also built on the VESA standard and do not require custom mounting hardware. Once installed, the KU90UHF can be locally configured via Ethernet port and a user-friendly web interface for ease of maintenance.

Get in touch

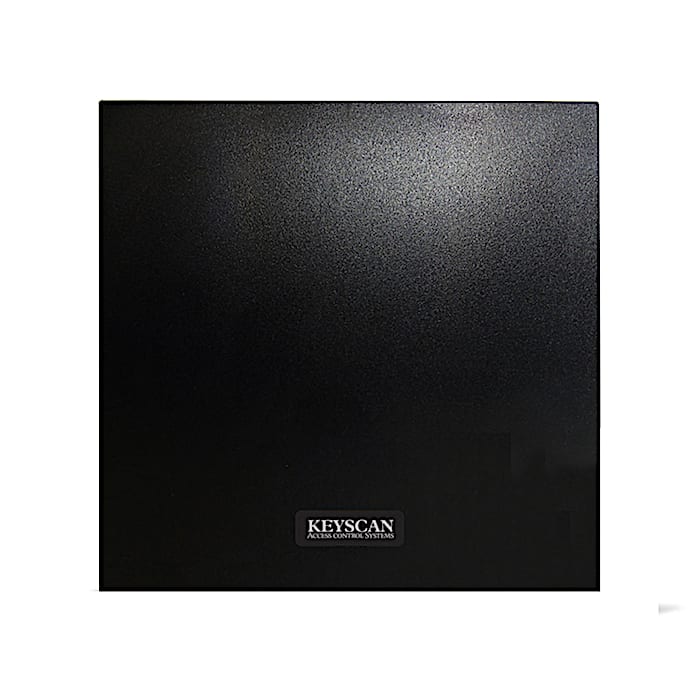

KU90UHF Readers Keyscan EAD
  • Convenient: Discreet hands-free authentication solution
  • Dynamic: Field configurable for ease of maintenance
  • Compliant: Secure Identity Object® (SIO®) technology

Product Details

  • Multi-layered security (beyond the chip security) ensures data authenticity and privacy through SIO supporting state-of-the-art cryptography (with AES 128 cryptography)
  • SIO data binding inhibits data cloning by binding an object to a specific credential
  • Reader has easy configuration with the embedded web interface (programming is required before operation)

Technical Details

Dimensions: 9.10” x 9.10” x 2.75” (23.1 x 23.1 x 7.0 cm)

  • Typical read range: 3 to 5 meters (9.8 ft - 16.4 ft)
  • Mounting: Drill mounting box to meet application. Drill points provided for US and EU boxes and 75 mm, 100 mm, 200 mm VESA mounts
  • Color: Black
  • Keypad: No
  • Operating voltage range: 12 VDC or 24 VDC
  • Standard current draw (mA): 320 @ 12VDC / 160 @ 24VDC
  • Peak current draw (mA): 1000 @ 12VDC / 500 @ 24VDC
  • Operating temperature: -30º to 150º F (-35º to 65º C)
  • Operating humidity: 5% to 95% relative humidity non-condensing
  • Transmit frequency: 902 – 928 MHz (North America)
  • Card compatibility: Keyscan KIUHF (UHF only); Keyscan KI4KSEUHF (iCLASS SE & UHF)
  • Cable distance: Wiegand Interface 500ft (150m) (22AWG). Use Shielded cable for best results
  • Housing material: UL94 Polycarbonate
  • Certifications: UL294/cUL (US), FCC Certification (US), IC (Canada)
  • Warranty: Limited lifetime

Components

Designed to function with the following credentials

  • Keyscan KIUHF
  • Keyscan KI4KSEUHF (Dual UHF-iCLASS SE format)

Optional credential windshield mount available (Part No: WSHLDMT)

Applications

  • Parking lots
  • Garages
  • Long range applications
