- Total height = 2.300 mm, passage height = 2.100 mm, upper body part = 200 mm
- Body side panels with 8 mm laminated safety glass, alternatively metal cladding.
- Thermal separation of body elements on façade level.
- Top dust-proof cover made of raw aluminium plate.
- Two maintenance openings in the lower ceiling plate (For DL option, outer opening
- can be locked by means of customer's profile cylinder).

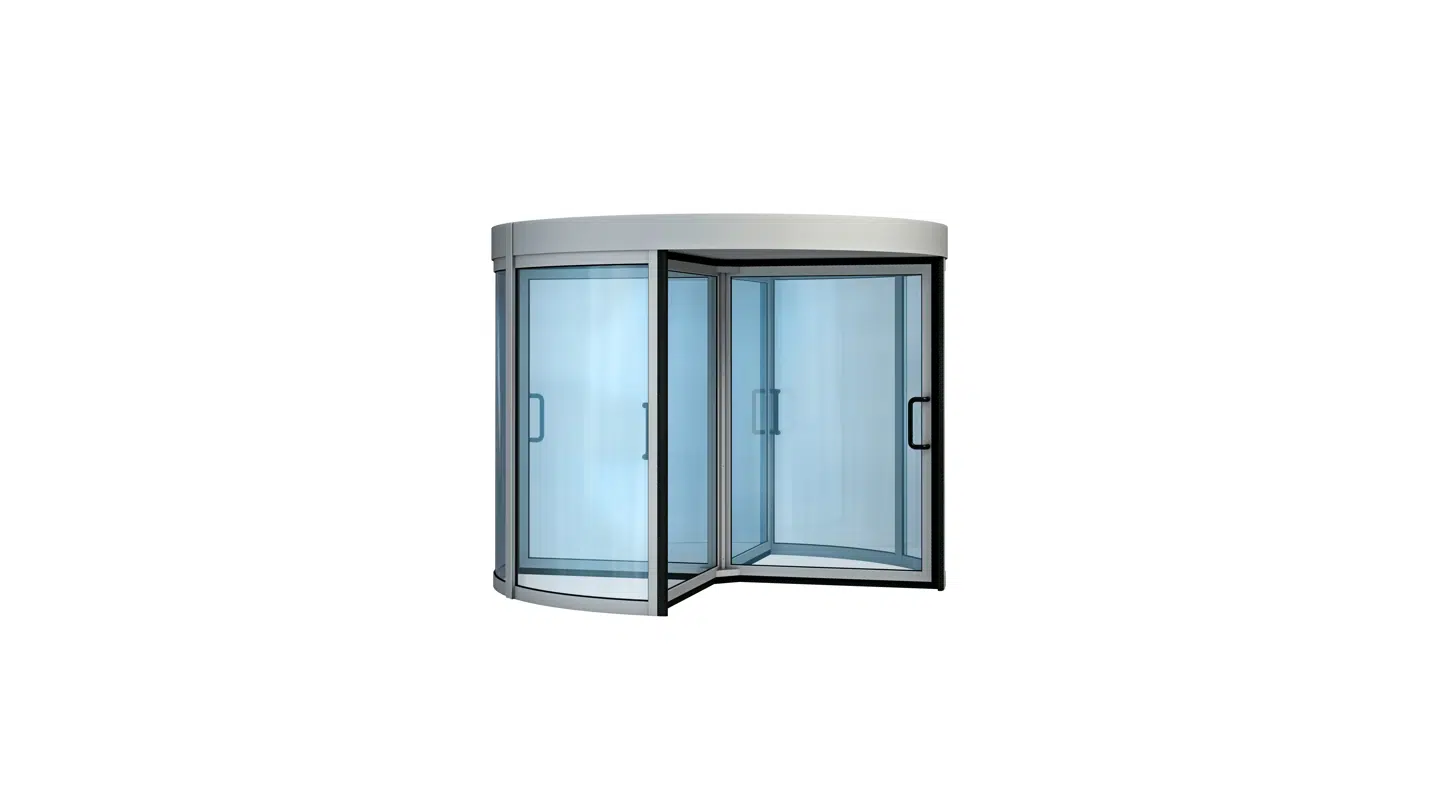

- Rotating unit four-leaf 180°, all-round aluminium profiles T40 with sealing brushes.
- Tempered safety glass.
- Black U-shaped handles.
- Bolt lock (installed on top of door leaf) prepared for profile cylinder provided by
- customer to fix the rotating unit.
- Powder-coated in an RAL colour.
- Can be rotated freely manually, smooth-running.
- Mounted on finished floor level FFL, floor evenness ± 2 mm (in the case of floor
- unevenness, we recommend you install a floor element).
