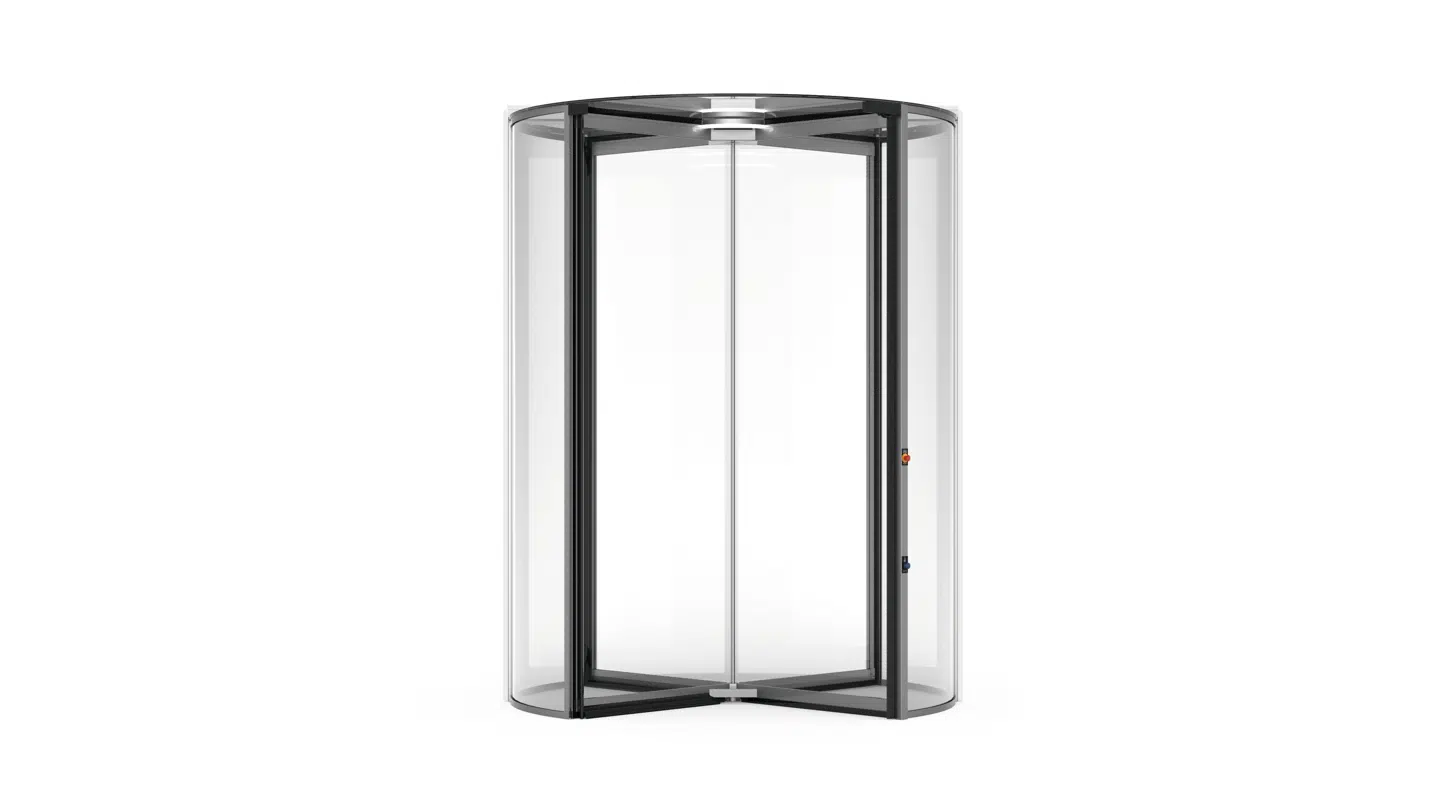

The New KTV ATRIUM FLEX revolving door takes lightness, enticing openness and undisrupted elegance to a new level, offering a combination of features unprecedented in a revolving door breaking down the barriers to creativity in entrance design. Buildings are both aesthetically and functionally enhanced in the best possible way, thanks to the beautiful all glass appearance of the KTV ATRIUM FLEX. Passage heights on our revolving door of up to 4m are available for all diameters up to 3m. Regardless of height and diameter no centre column is required resulting in a clear unobstructed view through the centre of the door.
- 'All Glass' 3 or 4 wing revolving door
- Side walls with special laminated safety glass filling
- Low wear, low-maintenance & low-noise electromechanical direct drive housed under the ceiling tested for 2 million cycles. Exists also with a floor mounted operator (solution called : KTV ATRIUM)
- Inside diameter : 2,000 - 3,000 mm
- Outside diameter : inside diameter + 98 mm (coated), +102 mm (stainless steel surfaces)
- Clear passage height : 2,100 – 4,000 mm
- Total height : clear passage height + 84 mm (coated), + 86 mm (stainless steel surfaces)
- LED light ring for flicker-free internal illumination
- Mechanical locking device
- Tested to EN 16005 “Power operated pedestrian doorsets. Safety in use. Requirements and test methods"
