Product Summary

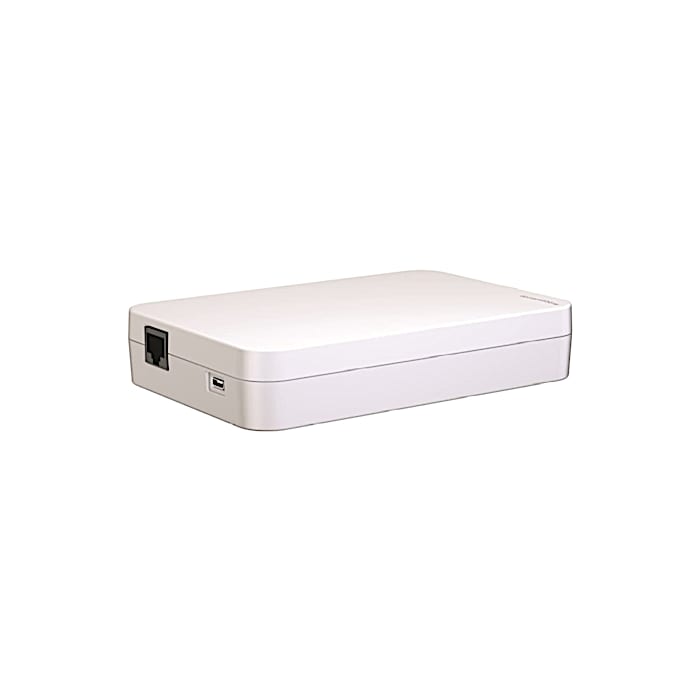

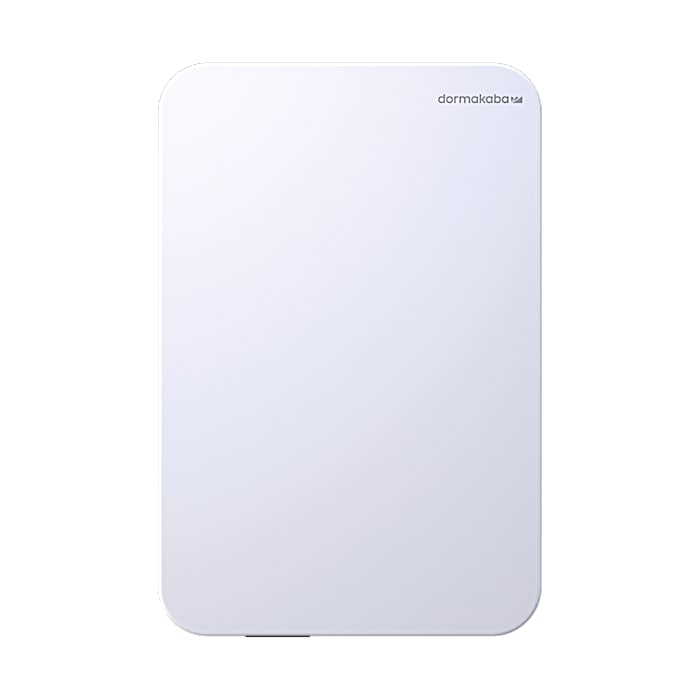

Elevate your facility security infrastructure with dormakaba’s Gateway GEN II, an online device seamlessly connecting standalone electronic door locks and your access control system through the ZigBee communications protocol.

Purpose-built for most dormakaba Zigbee enabled electronic locks, this gateway reinvents how you manage and monitor access in your multi-family housing facility.

The GEN II Gateway serves as the vital link between your access control system and the Zigbee-enabled electronic locks, ensuring a robust and responsive connection.

Enjoy the benefits of wireless communication and data transfer, allowing you to effortlessly oversee and control door access remotely.

Designed for multi-family residential facilities, our gateway GEN II facilitates a dynamic interplay between the software platform (may require updated firmware) and electronic locks, optimizing work processes and enhancing the overall resident experience.

Product Details

  • Securely encodes keycards and other access media (fobs, wrist-bands, etc.)
  • Power source: USB interface (5V) or Power over Ethernet (PoE)
  • TCP/IP interface to connect directly to an Ethernet Network (no software to install on the client workstation)
  • Supports RFID keycards or fobs (ISO 14443-A)
  • Supports MIFARE Ultralight C, MIFARE Plus* EV2, and MIFARE DESFire EV3 Credentials
  • *MIFARE Plus EV2: Should be used in conjunction with enhanced security mode available in Community
  • Supports dormakaba enhanced security encryption

Technical Details

  • Standards / Protocols -2.4 GHz DSS, IEEE 802.15.4, ZigBee compliant platform, DHCP, DNS Discovery
  • I/O Port  - 1 x 100 Mbit PoE capable Ethernet
  • Cabling Type - Ethernet – RJ45 Cat 5 or better
  • Dimensions - 3.6W x 1.025H x 5.37L inches (91.44W x 26.03H x 136.4L mm)
  • RF Data Rate - 3 Mbps
  • RF Sensitivity - Better than -97dBm
  • Transmit Power:
    • 10 mW for 74562 (Europe/Asia)
    • 158 mW for 74563 (North America)
    • 87 mW for 74564 (International)
  • Power Input - 5VDC +/- 0.25V for USB and 37 to 57VDC for PoE
  • Environmental Conditions:
    •  Operating Temperature: 0 to 50 °C (32 to 122 °F)
    • Humidity: 0 to 95% RH, non-condensing
    • Indoor Range: 30-55 meters (74563); 25-40 meters (74564); 20-30 meters (74562)

Applications

  • Suitable for all multi-family housing facility sizes 
  • Encodes a variety of RFID accessories including keycards, fobs and wristbands 
  • Encodes access to residential suites and apartments and common areas
