Crane Motion Assist 360

Crane revolving doors set the standard for timeless design aesthetics. The introduction of our Crane Motion Assist 360 allows building owners to realize touch-free entrance into their buildings, making it easier and safer for pedestrians of all abilities to use revolving doors. This new, low energy, state of the art drive system provides an intuitive experience while preserving the architectural vision for the building.

Classified as a manual revolving door, Crane Motion Assist 360 offers three (3) different operation modes, allowing you to choose the best operation method for your building. Depending on the traffic flow of your building, a simple turn of the key can change the operation mode from Manual to Power Assist or to Low Energy Automatic – providing the industries only touch-free manual revolving door experience. Motion Assist 360 delivers an unsurpassed user experience in a singular solution.

Get in touch
  • Classified as a Manual Revolving Door
  • Touch-Free Access
  • Three (3) different operation modes; manual, power assist & low energy automatic
  • Larger, more dependable drive box
  • Brushless motor that continues to function
  • Mounting plate that makes it easier to level during installation

Product Details

Available Crane models

  • 2000 Semi-Custom
  • 3000 Fully Custom

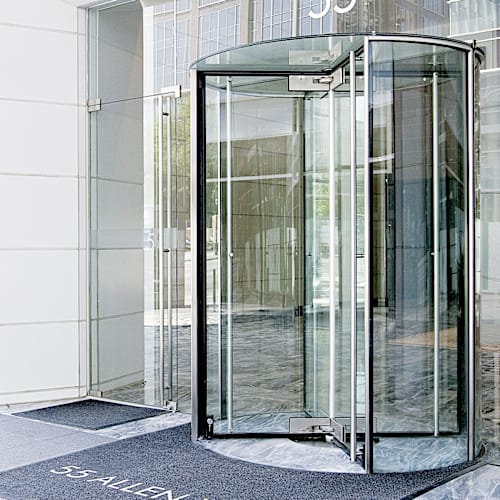

  • 4000 All Glass
  • Retrofit – For existing Crane 2000, 3000 and 4000 installations
  • Rehab – For existing competitive revolving doors

Technical Details

Technical Features

  • Voltage Requirements: 110 VAC-120 VAC +/- 10%
  • Line breaker: 10 Amps
  • Frequency: 50/60 Hz
  • Max Door Height and Width: Diameter + height cannot total more than 17 ft.
  • Certifications: Designed to comply with ANSI/BHMA A156.27-2019. Drive system must be commissioned based upon door size, door weight and prevailing conditions at the opening to ensure compliance.

Functionalities

When used in Low Energy Automatic mode, the energy efficient drive system rotates at low energy speed, allowing a user to pass through the door without physical contact. There are two (2) different options for activating the low energy drive system.

  • Touchless wave plate actuators can be used to start the drive system
  • The door can be set for continuous rotation

Applications

  • Commercial
  • Healthcare
  • Multifamily
  • Hospitality
  • Retail
  • Government
