Product Summary
Hermetic Doors must have the necessary competence in terms of hygiene, functionality and safety. In this sense, our hermetic doors with ES 200 mechanisms have the necessary equipment for all areas of use in terms of design and functionality.
Proven Success in Sealing

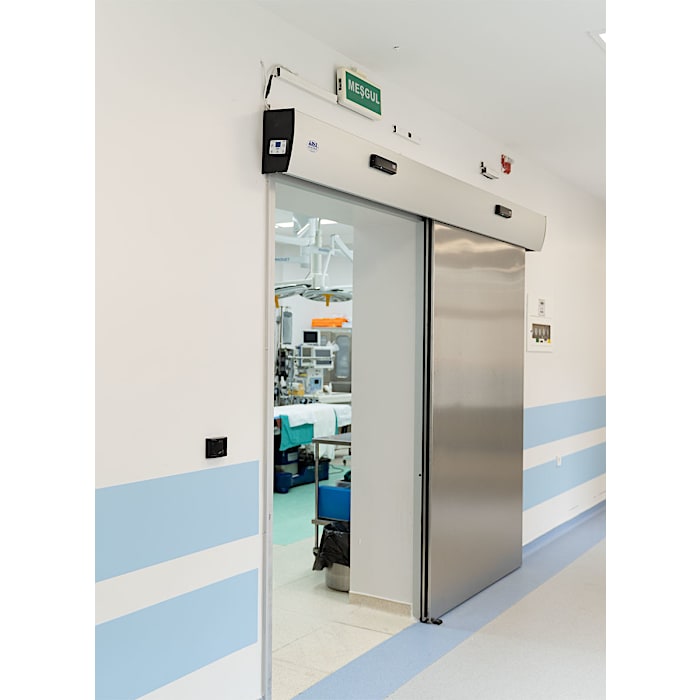

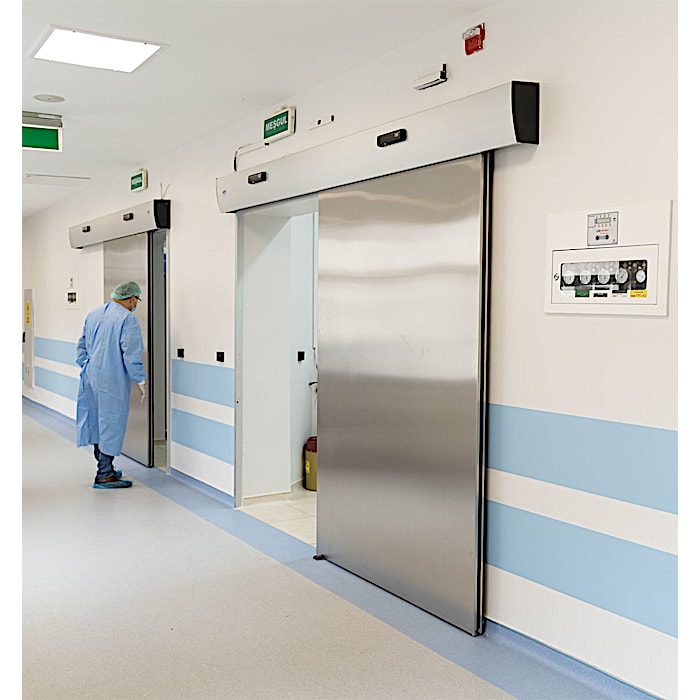

The ES 200 iCat Hermetic Door is certified to class 4 (EN1026), the highest level of impermeability. With these features, it offers a success in European standards.
Maximum Hygiene
There are many needs in the design and implementation phase of health structures. The primary one of these needs is undoubtedly hygiene with the understanding of "healthy space". How can we meet hospital hygiene and safety standards? You can achieve this by using health sector doors designed especially for this purpose. We bring a non-contact solution to the health problems that may occur in health structures due to the floor with the Hermetic Door
- Compact and innovative design.
- Push&go feature for fast and smooth movements
- Stainless steel suitable for heavy doors
- Parameterization feature via software
- Integrated airlock system for up to three doors
- 24V, 1000mA output for external use
- Highest level of impermeability (class 4)
Product Details
Maximum Hygiene
There are many needs in the design and implementation phase of health structures. The primary one of these needs is undoubtedly hygiene with the understanding of "healthy space". How can we meet hospital hygiene and safety standards? You can provide it by using health sector doors designed especially for this purpose. We bring contactless solutions to health problems that may occur due to contact in health structures with Hermetic Doors.
Maximum Security
The product provides protection not only in the doorway but also during the side opening movement of the wings and protects against accidental impacts from unseen obstacles. These products are prioritized at entrances where stretchers and wheelchairs pass through, which may not be detected by conventional photocells.
Featured Mechanism Difference: ES 200
The new, innovative ES 200 sliding door operator system offers the perfect solution for all applications and service requirements.Equipped with dormakaba PowerDrive technology, the ES 200 is able to meet every demand from operators in terms of adaptability to different door widths, door weight capacity and functionality. The modular design of the ES 200 provides an ideal basis for the implementation of new ideas and individual concepts in the design and construction of sliding door systems.
Technical Details
- 1 million + on-off life
- Up to 200 kg carrying capacity
- Temperature: -20/+60
- Motor: 24 V
- Automatic
- IP 20
- The motor has an automatic restart feature against compression of the leaves.
- Infinitely variable opening adjustment for winter and summer use
Functionalities
On both surfaces of the door panel, 4 mm thick compact laminate or laminate coated on 6 mm MDF is used, which is resistant to impacts and scratches, easy to clean, dust-free, resistant to moisture, cleaning materials (solvents and disinfectants), does not allow the settlement and development of microorganisms, has a non-porous texture.
Components
HPL Laminate Leaf Feature
Leaf construction is made of specially shaped profiles with a thickness of 48 mm, a minimum wall thickness of 2 mm (with a self-sealing slot), material AI 6063 quality, technical specifications. This profile is anodized with minimum 50-60 micron anodized coating or painted with 75-80 micron electrostatic powder paint.
Stainless leaf feature
Hermetic door wing and mechanism surface must be minimum 1 mm 304 quality stainless steel and satin finished. On top of it, there is a 400x400 mm, 6 mm thick tempered, grinded observation window glass (optional,) which is face to face with the stainless surface. This glass must be mounted on the door leaf with antibacterial adhesive, facing both surfaces of the leaf (without recesses and protrusions) and at eye level. There should be no abrasive and cutting surfaces on any edges and corners of the door. In addition, leaded glass and smart (blackout) glass can be used optionally.
