A unidirectional motion sensor for standard automatic doors.

The Eagle Artek Opening Sensor is suitable for use with all types of automatic doors including swing doors, sliding doors, and revolving doors.

Get in touch

Supply voltage: 12 - 24V AC +/-10%
(50-60Hz) 12-24V DC +30%/-10%
Under 1W power consumption
Mounting height between 1.8 - 4.0m
Transmitter frequency: 24.125 GHz
Transmitter radiated power <20 dBm EIRP
Transmitter power density <5 mW/cm²
IP54 Rated
Temperature range of -20°C to +55°C
5cm/s minimum detection speed
Vertical tilt angle: 0° to 90°
Lateral tilt angle: -30° to +30°

Product Details

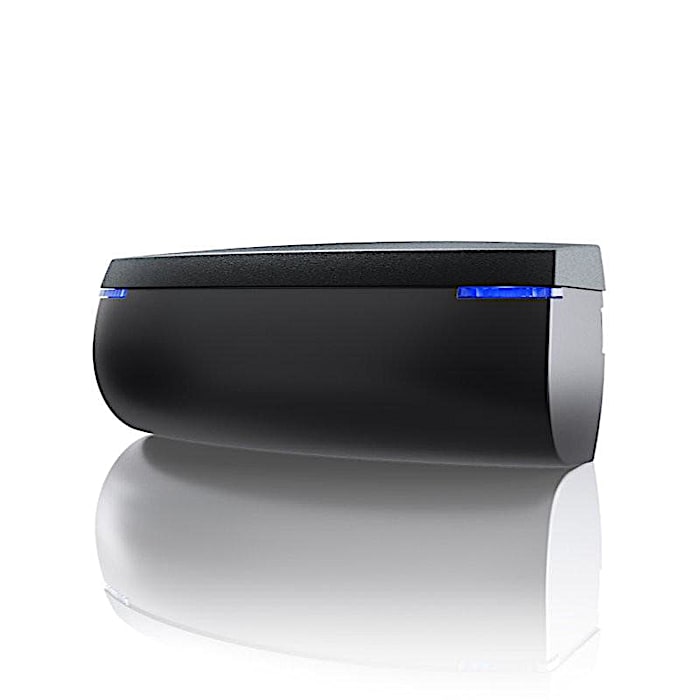

Eagle Artek is a slim and compact universal opening sensor for automatic doors that utilises microwave technology. It provides efficient and effective one way opening and optimises opening and closing cycles.

Setting the parameters is flexible and easy. No need to change the antenna to adjust the detection field; shape, immunity and size as these can be adjusted using push buttons. Everything is handled electronically.

Eagle Artek has the same fixing centres as its predecessor Eagle One for ease of replacement and upgrade. Amongst the range of Eagle Artek accessories is a retrofit interface to allow connection to existing wiring.

Eagle Artek also offers an improvement in cross traffic rejection; it better filters out parallel movements at the door that can cause unwanted detections.
