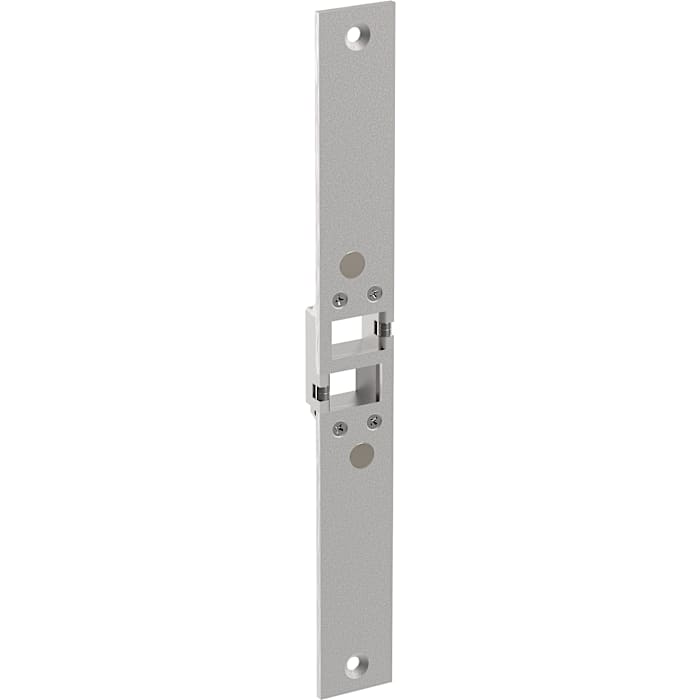

SL30DBL -Electronic Side Load Lock

The SL30DBL electronic side load lock is a motor driven electronic lock designed to secure commercial and residential double acting doors. The lock addresses the two biggest issues in door locking; the ability to align a misaligned door and the ability to release when requested, even with excessive load on the door.

Get in touch

High security for single action doors
10,000N holding force (1,000kg)
Door misalignment of up to 8mm is corrected
Sideload up to 600kg
Economical solution – less than 40Ma standby current

Product Details

Door misalignment of up to 8mm is corrected
Side load release – The door can have in excess of 600kg being applied and it will still release instantly when requested.
Automatic deadbolting
2 x 10mm thick stainless steel bolt pin
10,000N holding force (1,000kg)
Reverse polarity and transient protection
Multiple attempts to lock
Input voltage from 12VDC -24VDC
Convert from Fail Safe to Fail Secure by repositioning a single jumper
Door and bolt position monitors
Mortice mount horizontally or vertically, on double acting doors
Surface mount with the aid of the SLA30DBL accessories, including mounting onto glass
