Product Summary
EA patch fittings are characterized by their slim, neat shape and sophisticated hinge design. This comprehensive range of fittings maximizes the transparent elegance of single-action doors – whether hung in frames or integrated in toughened glass assemblies.
- Easy glass preparation, secure fixing
- Suitable for 8, 10 and 12 mm glass thicknesses
- Reliability built in
- Matching range of locks
- Virtually unlimited choice of colors and finishes
Product Details

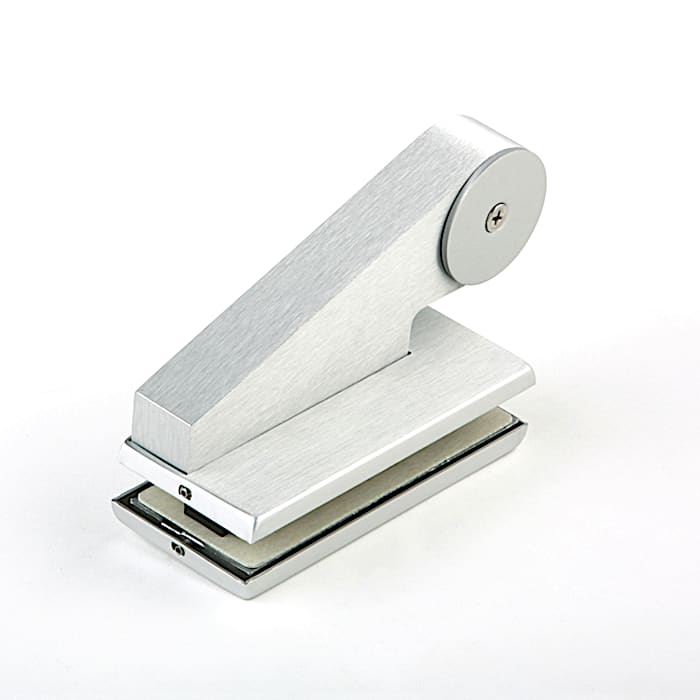

EA patch fittings
EA patch fittings are available for 10 and 12 mm glass thicknesses. With additional gaskets, the fittings can also be used for 8 mm glass.
Built in reliability
Quality materials and thorough workmanship mean that EA patch fittings have the features necessary to meet the most demanding of specifications.
Characteristic design
EA patch fittings are characterized by their slim, neat shape and sophisticated hinge design. This comprehensive range of fittings maximizes the transparent elegance of single-action doors – whether hung in frames or integrated in toughened glass assemblies.
Benefits for the architect
- EA patch fittings are characterized by their slim, neat shape and sophisticated hinge design
Benefits for the trade/distributor
- Modular system reduces storage space requirement
Benefits for the installer/fabricator
- DORMA-Glas has an intimate knowledge of the special properties of glass as a building material. This has led to the design of fittings requiring only minimal glass preparation – a quick and easy cut-out with complementary fixing holes.
- Carefully considered and positive measures have been taken to create the ideal contact surface with optimum clamping efficiency.
Technical Details
- For 10, 12, 8-mm glass thickness

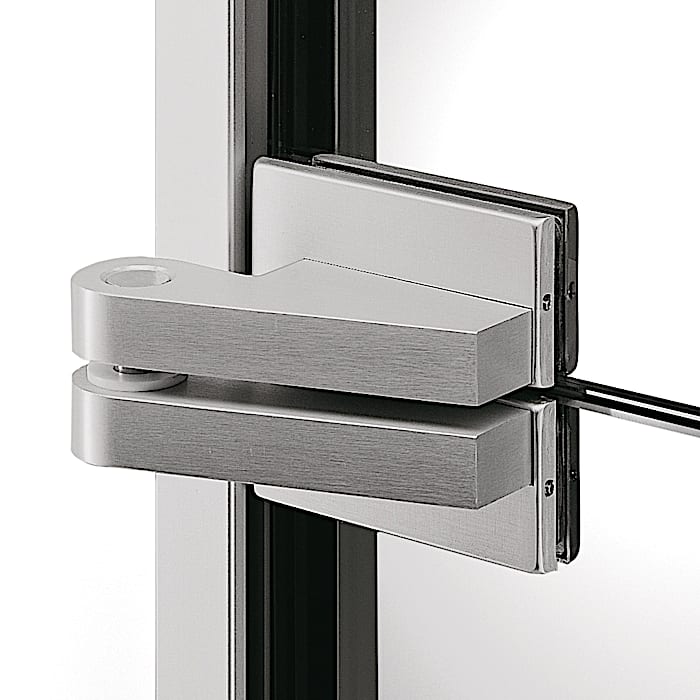

Corner fittings for single-action doors in frames:
- Max. door leaf weight: 90 kg
- Max. door leaf width: 1000 mm
Corner fittings for single-action doors in toughened glass assemblies
- Max. door leaf weight: 100 kg
- Max. door leaf width: 1100 mm
You can find additional technical information in the technical documents for download.
Applications
For indoor and outdoor use, e.g.
- Doctor's offices
- Hotel rooms
- Schools and universities
- Shop fronts
- Office rooms
- Private residences
