Product Summary

UL Group 2M, EN1300B, VdS Class 2

  • 3-wheel combination lock with dead bolt
  • Thru-case mounting
  • Standard footprint
  • One million possible combinations
  • Integrated re-locker bolt blocking in case of manipulation
  • Bolt in 0.5” (12.7mm) standard or 1.50” (38.1mm) extended option
  • Drilled and tapped bolt options – US (10-32) and metric (4mm)
  • Mounting – RH, LH, VU, VD

Product Details

Approvals/Certificates

  • EN 1300 B, ECB-S, VdS class 2, and BSI approval (with dial and ring combination), UL 1

Lock

  • 3 wheels
  • Integrated relocker: bolt blocking in case of manipulation of the lock cover
  • Die-cast lock case, bolt and drop lever
  • Hardware pack: change key, spline key
  • 2 screws 1/4 - 20 x 3/8 PH, 2 screws 1/4 - 20 x 1 PH, metric hardware available
  • Spline key, suitable for all LA GARD dial and ring combinations/spindles

Admissible mounting positions

  • Right hand, left hand, vertical up, vertical down

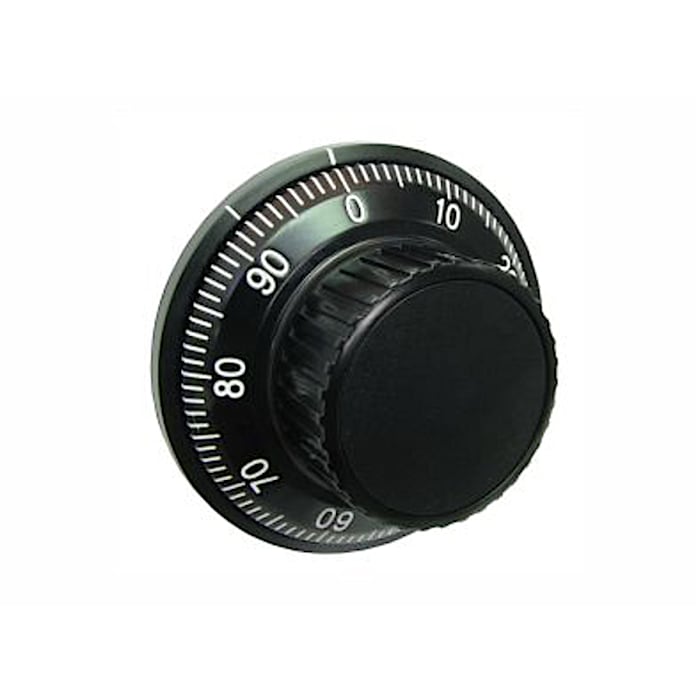

Mechanical Combination Lock LA GARD 3390 S
